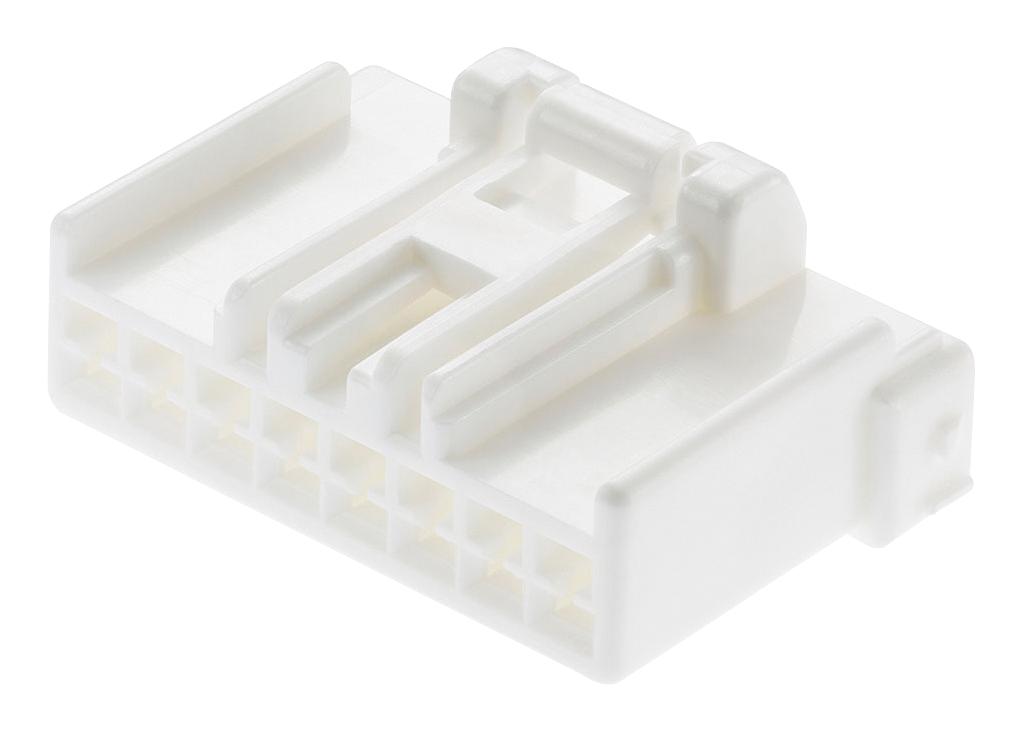

MOLEX 5005920200 Wire-to-Wire Connector
The 500592 series CP-2.5 mini connector system provides a compact, reliable solution for electrical connections in consumer, home appliances, and industrial automation. This 2.50mm pitch single-row wire-to-wire receptacle housing features a positive lock, tactile, audible click, and terminal position assurance for secure, proper wire placement. Made of UL94V-0 rated PBT, it operates from -40°C to +85°C with a maximum voltage of 250VAC and 3A current. Capable of withstanding up to 30 mating cycles, it ensures durability, safety, and space-saving installation for various electronic devices.
MOLEX 5005920200 Wire-to-Wire Connector Specifications:
- Pitch: 2.50mm
- Material - Resin: UL94V-0 rated PBT
- Color - Resin: Natural
- Temperature Range - Operating: -40°C to +85°C
- Voltage Rating: 250VAC
- Current Rating: 3A
- Number of Mating Cycles: Up to 30
- Mates With: CP-2.5 Mini Plug Housing 500593
- Use With: Female Crimp Terminal 50397 TPA
- Features: Positive Lock, Terminal Position Assurance (TPA), Tactile & Audible Click
- Net Weight: 730.000 mg
- Packaging: Bag
- Application: Consumer, Home Appliances, Industrial Automation
Buy the Buy Molex CP Wire-to-Wire Part Number 5005920200 Online
Secure reliable connections with the Molex wire-to-wire connector designed for space-conscious applications. Featuring positive lock, tactile, audible feedback, and terminal position assurance, it ensures perfect wire placement. Made of UL94V-0 rated PBT, it operates from -40°C to +85°C, supporting up to 30 mating cycles. With a voltage rating of 250VAC and 3A current capacity, this durable, compact connector is ideal for consumer electronics, industrial automation, and home appliance applications. Buy online today for trusted quality and performance.
Buy Molex 5005920200 now and experience unmatched reliability and secure space-saving electrical connections for your industrial and consumer electronics.
Frequently Asked Questions
Where can I buy MOLEX 5005920200?
You can click on the BUY or RFQ button to purchase 5005920200 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5005920200?
You can download the 5005920200 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5005920200?
MOLEX
