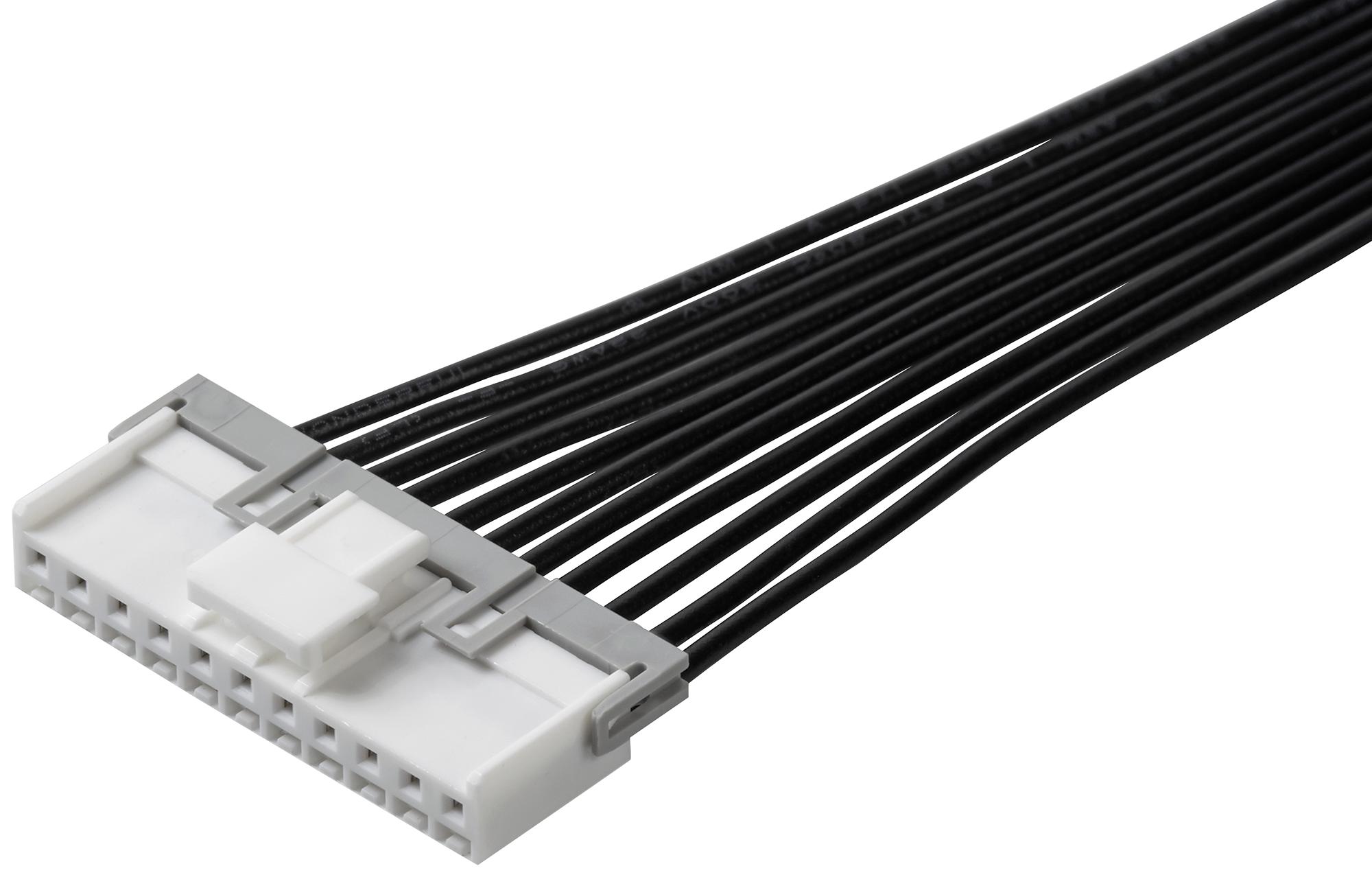

MOLEX 151371203 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-1203 is a Mini-Lock wire-to-board connector system designed for reliable signal transmission in various industrial applications. This cable assembly features a female-female connector configuration, a 2.50mm mating interface pitch, and a 300mm cable length. Constructed with copper alloy and polyester materials, and finished with matte tin plating, it ensures robust and secure connections. It is RoHS compliant and suitable for applications requiring a compact and efficient wire-to-board solution.
MOLEX 151371203 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- cable_length: 300.00mm
- circuits_loaded: 12
- color_resin: Natural
- material_metal: Copper Alloy
- plating_mating: Matte Tin (0.889µm)
- plating_termination: Matte Tin
- material_resin: Polyester
- net_weight: 23.140/g
- pitch_mating_interface: 2.50mm
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
- drawing_number: 151371203-000
Buy the 15137-1203 MOLEX Mini-Lock Wire-to-Board Connector | myMectronic
Purchase the MOLEX 15137-1203 Mini-Lock Wire-to-Board Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151371203?
You can click on the BUY or RFQ button to purchase 151371203 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151371203?
You can download the 151371203 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151371203?
MOLEX
