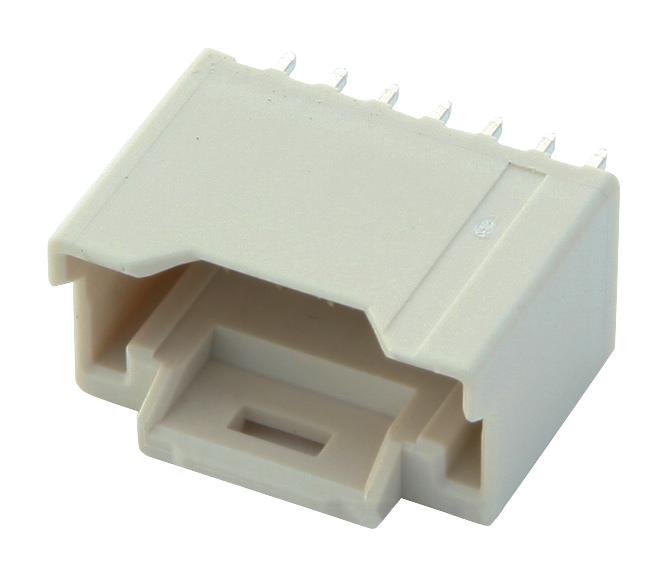

MOLEX 5016453020 iGrid Wire-to-Board Header
The MOLEX 501645-3020 iGrid Wire-to-Board Header is a robust connector solution for wire-to-board applications. Designed with a 2.00mm pitch and a dual-row configuration, this header provides a secure and reliable connection for signal transmission. The tin plating ensures excellent solderability and corrosion resistance, while the PCB locator simplifies assembly and enhances precision. Its vertical orientation and keyed design contribute to ease of use and prevent mis-mating. Suitable for a wide range of industrial and commercial applications requiring a durable and compact wire-to-board connector.
MOLEX 5016453020 iGrid Wire-to-Board Header Specifications:
- overview: iGrid Wire-to-Board Dual-Row System
- description: 2.00mm Pitch iGrid Wire-to-Board Header, Dual Row, Vertical, Tin (Sn) Plating, with PCB Locator, 30 Circuits
- product_family: PCB Headers
- series: 501645
- application: Signal, Wire-to-Board
- circuits_loaded: 30
- circuits_maximum: 30
- color: Natural
- durability_mating_cycles: 30
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length: 3.20mm
- pcb_locator: Yes
- pcb_retention: None
- pcb_thickness_recommended: 1.20mm, 1.60mm
- packaging_type: Tray
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- stackable: No
- surface_mount_compatible: No
- temperature_range_operating: -40°C to +105°C
- termination_interface_style: Through Hole
- current_maximum_per_contact: 2.0A
- voltage_maximum: 250V AC (RMS)/DC
- upc: 822350299374
- net_weight: 1762.000/mg
