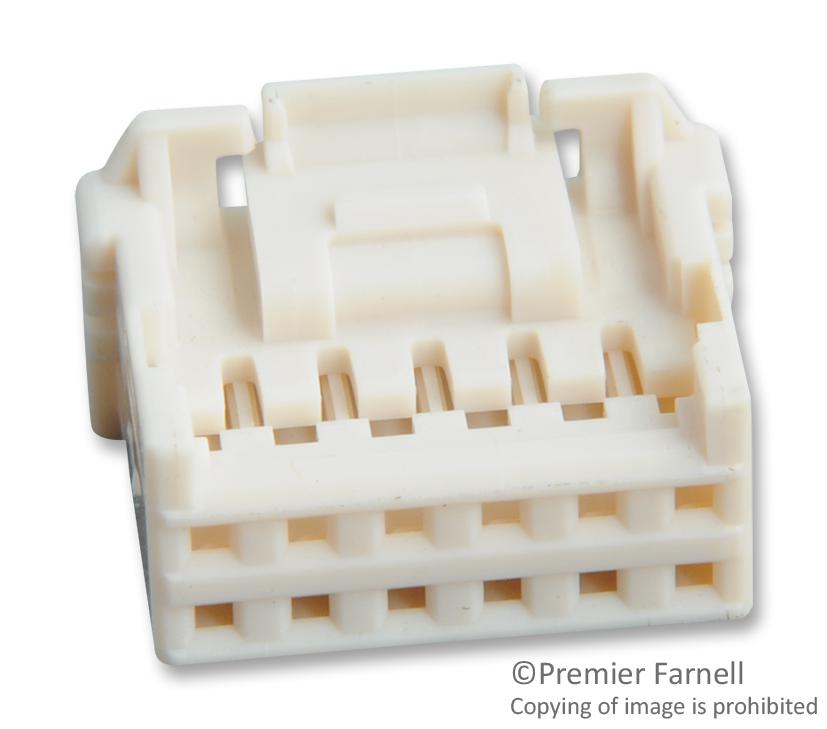

MOLEX 5016462600 iGrid Wire-to-Board Housing
The MOLEX 501646-2600 iGrid Wire-to-Board Housing is a robust solution for wire-to-board connectivity in various industrial applications. This dual-row housing, with a 2.00mm pitch, provides a secure and reliable connection for signal transmission. The positive lock feature ensures the housing remains firmly attached to the mating connector, preventing accidental disconnections. It is designed for use with 22-26 AWG terminals and is compatible with several header options, making it a versatile choice for diverse electronic designs. The housing is constructed from Nylon resin and offers good flame retardancy (94V-0).
MOLEX 5016462600 iGrid Wire-to-Board Housing Specifications:
- overview: iGrid Wire-to-Board Dual-Row System
- description: 2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 26 Circuits
- circuits_maximum: 26
- color_resin: Natural
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight: 760.000/mg
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating: -40° to +105°C
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- upc: 822350087216
- series: 501646
- mates_with_501645: Yes
- mates_with_503091: Yes
- mates_with_501876: Yes
- use_with_501647: Yes
- use_with_501648: Yes
