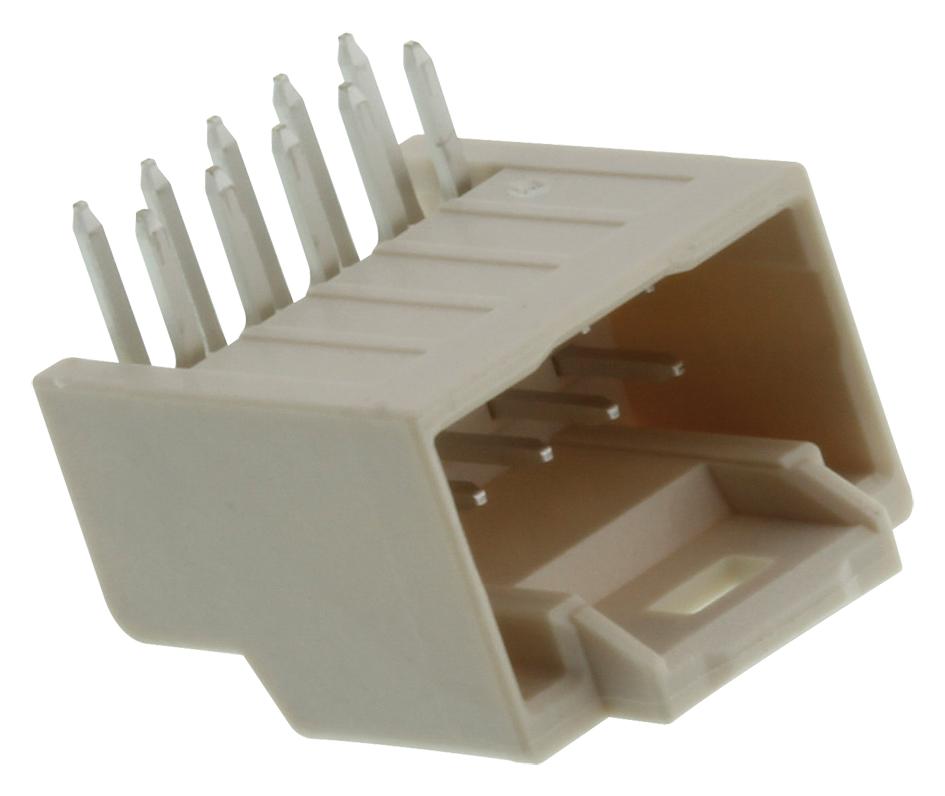

MOLEX 5018761240 iGrid Wire-to-Board Header
The MOLEX 501876-1240 iGrid Wire-to-Board Header is a robust connector solution for wire-to-board applications. Designed with a 2.00mm pitch and a dual-row configuration, it provides a secure and reliable connection for signal transmission. The right-angle orientation simplifies integration into various PCB layouts. Constructed with brass and plated with tin, this header offers excellent conductivity and durability. It is ideal for applications requiring a compact and efficient wire-to-board connection, such as industrial automation, consumer electronics, and automotive systems. The header is RoHS compliant and supports a maximum current of 2.0A and a voltage of 250V AC/DC.
MOLEX 5018761240 iGrid Wire-to-Board Header Specifications:
- status: Active
- overview: iGrid Wire-to-Board Dual-Row System
- description: 2.00mm Pitch iGrid Wire-to-Board Header, Dual Row, Right-Angle, Tin (Sn) Plating, 12 Circuits
- series: 501876
- upc: 822350170888
- application: Signal, Wire-to-Board
- circuits_loaded: 12
- circuits_maximum: 12
- color_resin: Natural
- durability_mating_cycles: 30
- flammability: 94V-0
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight_mg: 1493.000
- number_of_rows: 2
- orientation: Right Angle
- pc_tail_length_mm: 3.20
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.20, 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 2.00
- polarized_to_mating_part: Yes
- polarized_to_pcb: No
- stackable: No
- surface_mount_compatible: No
- temperature_range_operating_c: -40° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 2.0
- voltage_maximum_ac_rms_dc_v: 250
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- breakaway: No
- material_info_drawing_numbers: Application Specification 5016460000-A00, 5016460000-A01, Packaging Specification SPK-501876-001-001, Product Specification PS-501646-001-001, Sales Drawing SD-501876-001
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
