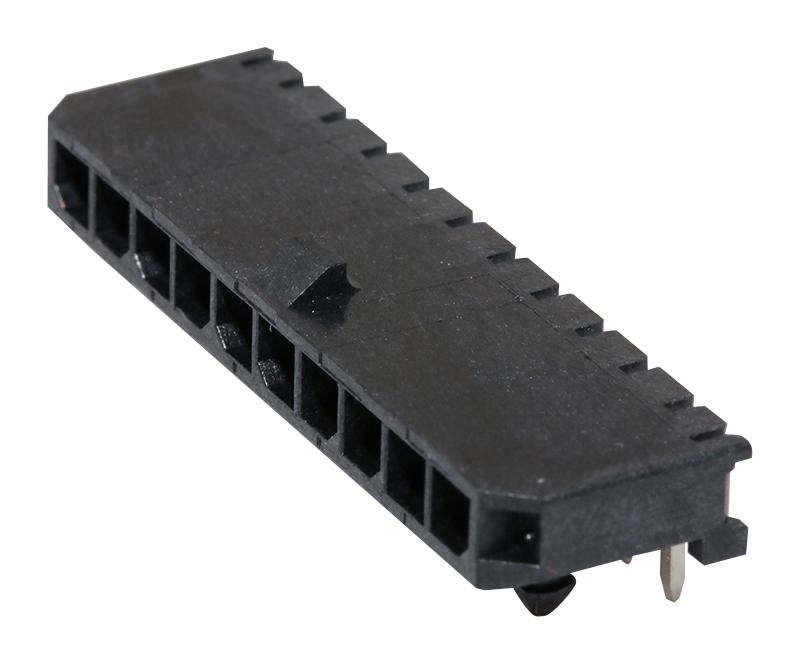

MOLEX 436501000 Micro-Fit 3.0 Header
The MOLEX 43650-1000 is a Micro-Fit 3.0 right-angle header, part of the 43650 series, designed for robust power and wire-to-board connections. This header features 10 circuits arranged in a single row, with a 3.00mm pitch. Constructed with a black, high-temperature thermoplastic resin and tin plating, it offers excellent durability and performance. The header is glow-wire capable, meeting stringent safety standards for household and similar electrical appliances. It is compatible with Micro-Fit 3.0 receptacle housings and offers polarized PCB connection for ease of assembly. Suitable for applications requiring reliable power delivery and secure board connections.
MOLEX 436501000 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 10 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Glow-Wire Capable, Black
- Circuits (Loaded): 10
- Circuits (maximum): 10
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.788/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 030
- Lead-freeProcess Capability: SMC&WAVE
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
