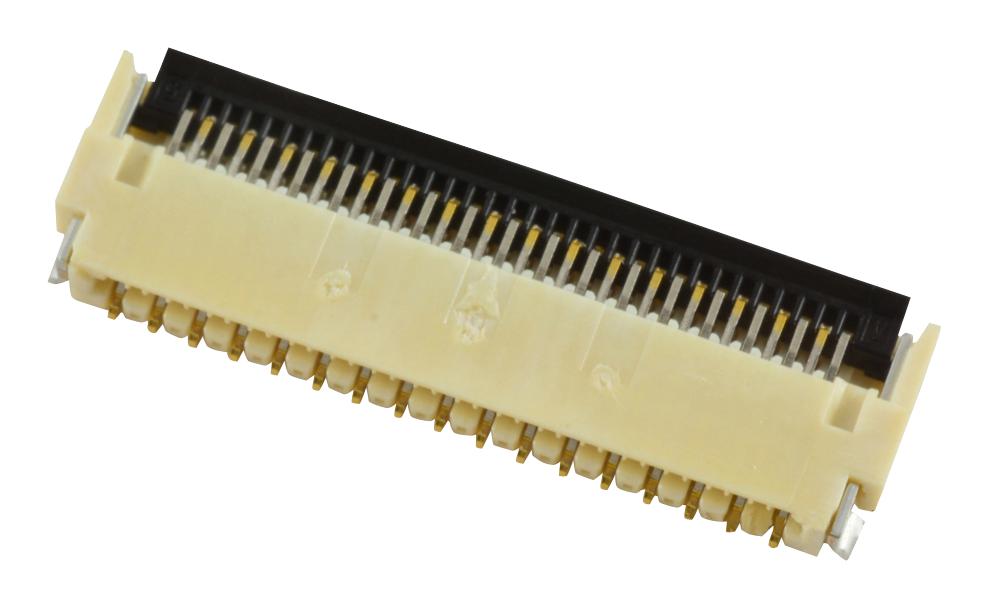

MOLEX 5025982593 Flexible Circuit Connector
The 0.30mm Pitch Easy-On Back Flip FPC Connector is designed for reliable surface-mount applications, offering a right-angle, dual contact style and a mated height of 1.15mm. Suitable for high-density flexible circuit connections, it features a durable design with a maximum of 10 mating cycles, made of copper alloy with gold and tin plating for excellent conductivity and corrosion resistance. Its compact, surface-mount structure supports PCB mounting with retention features, ideal for tight electronic assemblies requiring a secure and easy connection. The connector operates within a temperature range of -40°C to +105°C, ensuring stable performance across various environments.
MOLEX 5025982593 Flexible Circuit Connector Specifications:
- Pitch - Mating Interface: 0.30mm
- Circuits (Loaded): 25
- Contact Style: Dual
- Color - Resin: Black, White
- Material - Metal: Copper Alloy, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold, Tin
- Mated Height: 1.15mm
- Durability (mating cycles max): 10
- Temperature Range - Operating: -40°C to +105°C
- PCB Mounting: Surface Mount
- Packaging Type: Embossed Tape on Reel
- Wire/Cable Type: FPC only
- Current - Maximum per Contact: 0.2A
- Voltage - Maximum: 50V AC/DC
- Orientation: Right Angle
Buy the Buy Molex FFC FPC Connector Part Number 5025982593 Online
Purchase the Molex Flexible Circuit Connector online today for a reliable, high-performance connection solution. With a 0.30mm pitch, dual contacts, and surface-mount design, it offers excellent durability and compactness for high-density flexible circuit applications. Its robust construction supports up to 10 mating cycles, with gold and tin plating for optimal conductivity and corrosion resistance. Suitable for various environments from -40°C to +105°C, this connector ensures secure and stable connections in space-constrained electronic assemblies, ideal for advanced electronic devices and projects.
Order your Molex Series502598 25-Circuit FPC Connector today and ensure secure, reliable flexible circuit connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 5025982593?
You can click on the BUY or RFQ button to purchase 5025982593 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5025982593?
You can download the 5025982593 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5025982593?
MOLEX
