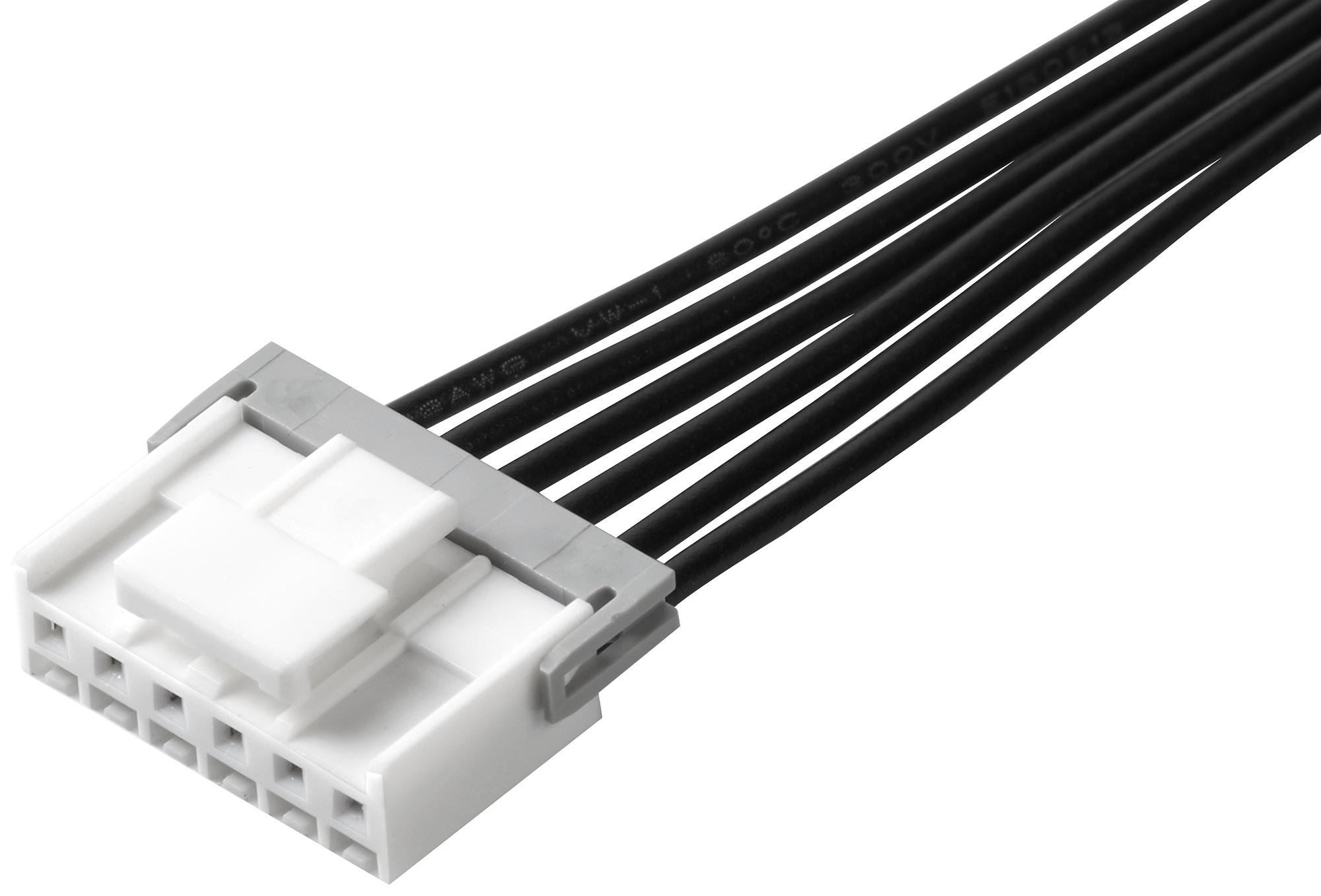

MOLEX 151370503 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0503 Mini-Lock wire-to-board connector assembly provides a reliable connection solution for signal transmission in diverse industrial settings. This dual-ended connector features a female-female configuration, a 2.50mm pitch, and a 300mm cable length, offering flexibility in design and application. Constructed with copper alloy and plated with matte tin for both mating and termination interfaces, it ensures excellent conductivity and durability. The natural polyester resin overmold enhances insulation and protection. This connector is ideal for applications requiring robust and compact wire-to-board connections.
MOLEX 151370503 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- product_family: Cable Assemblies
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- overmolded: No
- cable_length: 300.00mm
- circuits_loaded: 5
- color_resin: Natural
- material_metal: Copper Alloy
- plating_mating: Matte Tin (0.889µm min)
- plating_termination: Matte Tin
- material_resin: Polyester
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- termination_interface_style: Crimp or Compression
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
