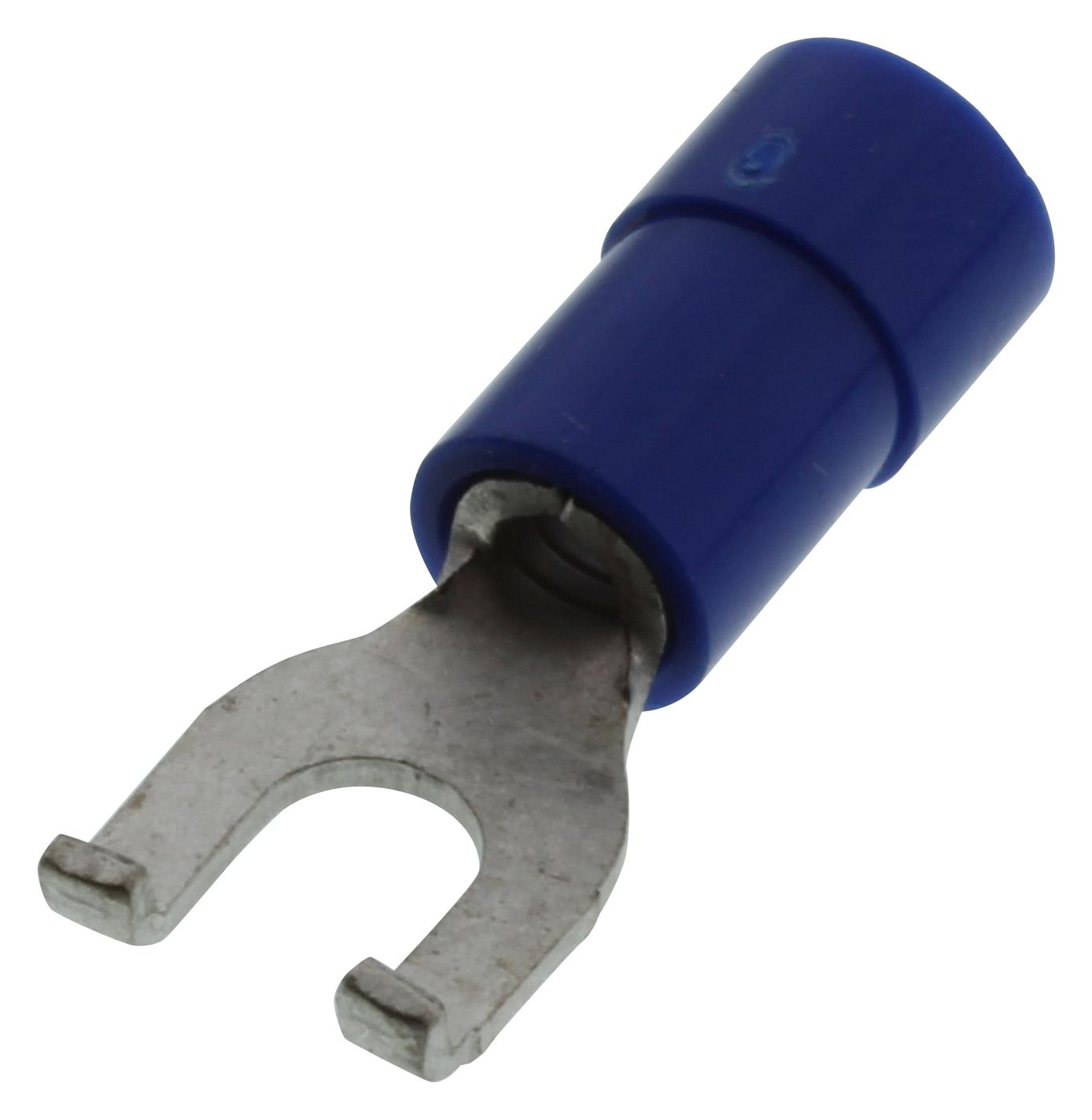

MOLEX 191210030 InsulKrimp Spade Terminal
The MOLEX 19121-0030 InsulKrimp Flanged Spade Tongue Terminal is a robust and reliable solution for terminating wires in a variety of industrial and commercial applications. Designed for 14-16 AWG wire, this terminal utilizes MOLEX's InsulKrimp technology to ensure a secure and consistent connection. The flanged design provides added stability and prevents pull-out, making it suitable for applications requiring a durable and reliable electrical connection. It is commonly used in automotive, appliance, and industrial equipment wiring harnesses.
MOLEX 191210030 InsulKrimp Spade Terminal Specifications:
- status: Active
- overview: Solderless Terminals
- description: InsulKrimp Flanged Spade Tongue Terminal for 14-16 AWG Wire, Stud Size 10 (M5), Length 20.19mm
- series: 19121
- wire_size_awg: 14, 16
- wire_size_mm_sq: 1.00-2.50
- stud_size: 10 (M5)
- wire_insulation_diameter: 4.45mm
- material_plating_mating: Tin
- plating_min_mating: 4.064µm
- plating_min_termination: 4.064µm
- material_insulation: PVC
- flammability: 94V-0
- color_resin: Natural
- barrel_type: Closed
- net_weight_g: 1.135
- packaging_type: Bag
- crimp_quality_equipment: Yes
- mil_spec: N/A
- product_name_molex: InsulKrimp
- type: Spade
- upc: 800753095656
- engineering_number: BB-216-10X
- product_specification_references: PS-19902-009-001, PS-19902-011-001, PS-19902-013-001
- sales_drawing_reference: SD-19121-001
- eu_elv: Not Relevant
- eu_rohs: Not Reviewed
- reach_svhc: Not Contained Per - ED/30/2017 (7 July 2017)
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
- application_tooling_premium_grade_hand_crimp_tool: 640010100
- application_tooling_hand_crimp_tool: 640010300
- application_tooling_crimp_head_at200_pneumatic_hand_tool: 640050100
- application_tooling_crimp_head_at200_pneumatic_hand_tool_2: 640050300
- agency_certification_csa: LR18689
- agency_certification_ul: E32244
