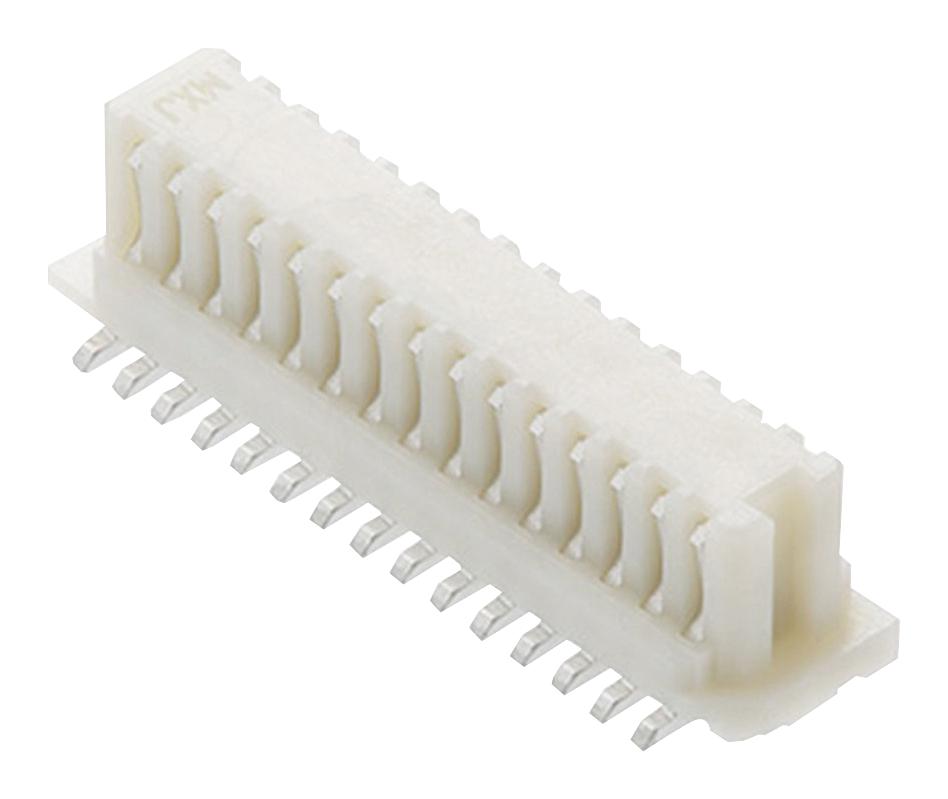

MOLEX 524651471 Board-to-Board Connector
The SlimStack Board-to-Board Connector offers a compact and reliable solution for high-density electronic assemblies, featuring a 0.80mm pitch, floating design, and Rigid type. Suitable for applications requiring 14 circuits with mated heights between 4.50 to 7.00mm, it is constructed from phosphor bronze with tin plating for durability. Operating within -40°C to +105°C, it supports a maximum current of 0.5A per contact and voltage of 50V. This waterproof, RoHS-compliant connector ensures high performance in demanding environments while enabling efficient PCB assembly and maintenance.
MOLEX 524651471 Board-to-Board Connector Specifications:
- Pitch: 0.80mm
- Number of Circuits: 14
- Mated Height: 4.50 to 7.00mm
- Material - Metal: Phosphor Bronze
- Plating - Mating & Termination: Tin
- Temperature Range: -40°C to +105°C
- Electrical: 0.5A per contact, 50V
- Durability: Up to 30 mating cycles
- Color - Resin: Natural
- Orientation: Vertical
- PCB Thickness - Recommended: 1.60mm
- Packaging: Embossed Tape on Reel
- Surface Mount Compatible
- RoHS Compliant, Halogen-Free
Buy the Buy Molex SlimStack Board-to-Board Connector Part Number 524651471 Online
Purchase the Molex SlimStack Board-to-Board Connector online today to ensure a compact, reliable, and RoHS-compliant connection solution suitable for high-density electronics. With a 0.80mm pitch and 14 circuits, this connector's floating design enables flexible PCB mating and stable electrical connections. Made from durable phosphor bronze with tin plating, it withstands temperatures from -40°C to +105°C and supports up to 0.5A per contact. Ideal for applications requiring minimal space and high performance, it simplifies assembly processes and guarantees long-term reliability.
Buy Molex 524651471 now and experience unmatched reliability and high-density performance in your electronic assembly.
Frequently Asked Questions
Where can I buy MOLEX 524651471?
You can click on the BUY or RFQ button to purchase 524651471 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 524651471?
You can download the 524651471 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 524651471?
MOLEX
