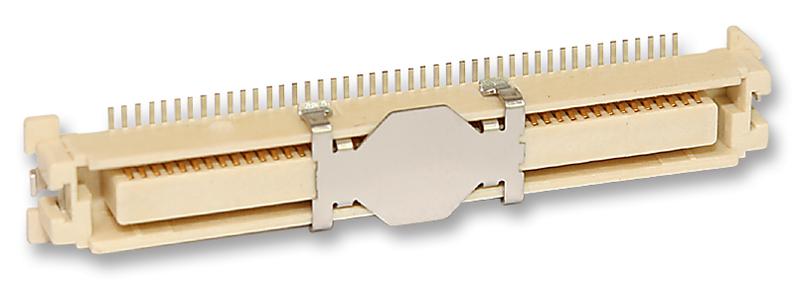

MOLEX 528851674 SlimStack Board-to-Board Connector
The MOLEX 52885-1674 SlimStack connector is a precision-engineered board-to-board connector designed for applications requiring a compact and reliable connection. Its 0.635mm pitch allows for high-density interconnects, while the surface mount design simplifies assembly processes. The connector's dual-row configuration and vertical stacking capabilities make it suitable for a wide range of electronic devices, including portable electronics, instrumentation, and industrial equipment. Constructed with copper alloy and gold/tin plating, it ensures excellent signal transmission and durability. It is RoHS compliant and features a halogen-free design, aligning with environmental sustainability standards.
MOLEX 528851674 SlimStack Board-to-Board Connector Specifications:
- Pitch: 0.635mm
- Stacking Heights: 6.00 to 10.00mm
- Circuits: 160
- Mated Height: 10.00mm, 6.00mm, 7.00mm, 8.00mm, 9.00mm
- Mated Width: 6.40mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Flammability: 94V-0
- Durability (mating cycles max): 50
- Operating Temperature Range: -55° to +105°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 100V
- PCB Thickness - Recommended: 1.60mm
- Mates With: 55091, 53649, 53627, 53647, 53625
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Low-Halogen: Yes
- Reach Compliant: Not Contained
