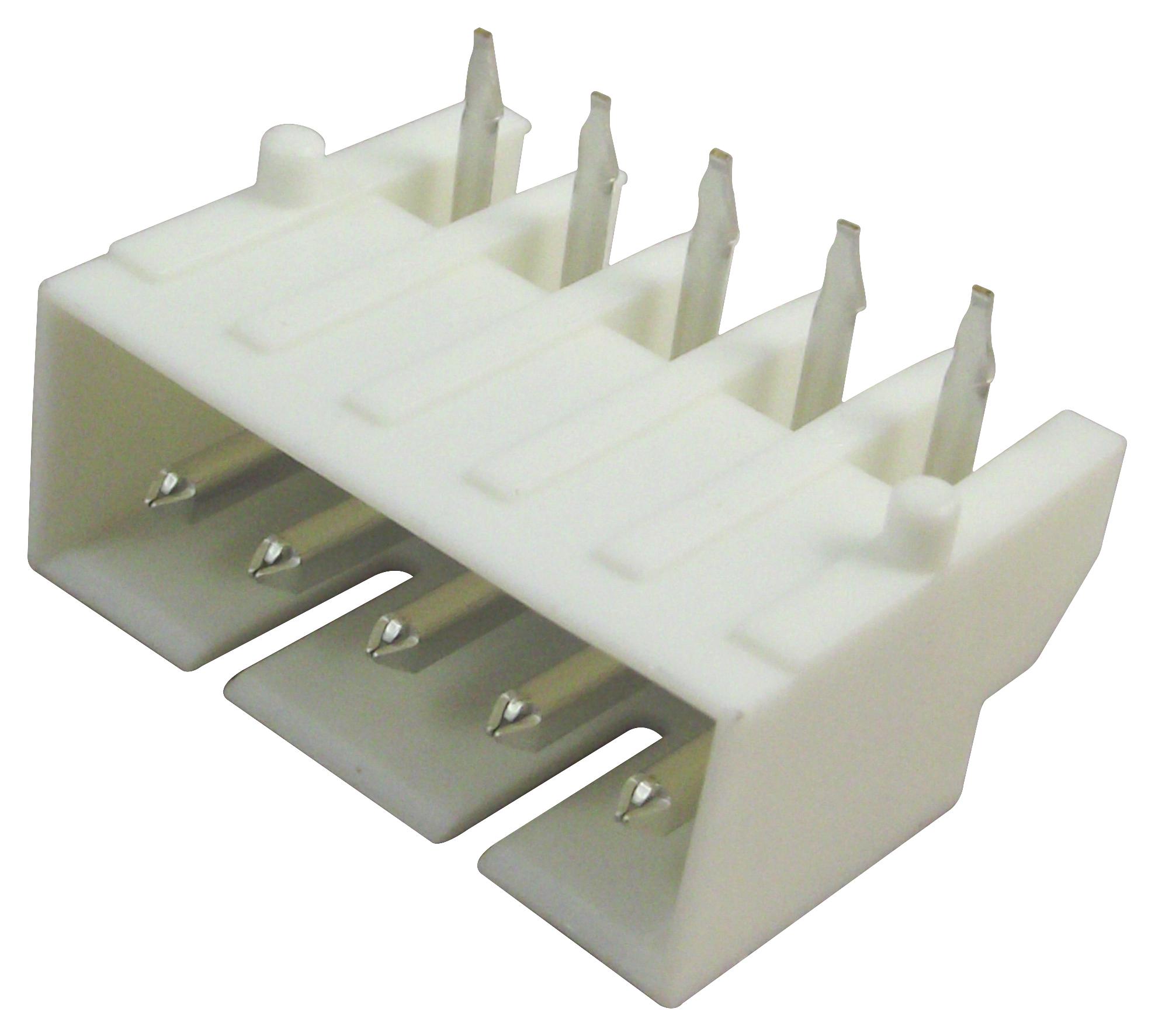

MOLEX 532590229 Power Connector
The Mighty-SPOX Header is a reliable right-angle power connector with a 3.50mm pitch, designed for wire-to-board applications. Made from brass with tin plating, it features 2 circuits with a maximum of 30 loaded circuits, rated for 5.5A and 250V. Its durable, RoHS-compliant design supports up to 30 mating cycles, operating between -40°C to +105°C. Compatible with power and signal connections, this PCB header is ideal for compact, high-current electronics requiring secure, quick connections.
MOLEX 532590229 Power Connector Specifications:
- Pitch: 3.50mm
- Number of Circuits: 2
- Maximum Circuits: 30
- Material: Brass
- Plating: Tin
- Current Rating: 5.5A
- Voltage Rating: 250V
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 30 mating cycles
- Orientation: Right angle
- Termination Style: Through hole
- Flammability: UL 94V-0
- RoHS Compliant
- Size: 1.60mm Tail Length
- Packaging: Tray
Buy the Molex Series Mighty-SPOX Power Connector: 0532590229
Enhance your electronic designs with the Molex Series Mighty-SPOX Power Connector, featuring a 3.50mm pitch, brass construction, and reliable 5.5A/250V ratings. Its right-angle orientation makes it ideal for compact power and signal applications. Designed for durability with up to 30 mating cycles, this RoHS-compliant connector withstands operating temperatures from -40°C to +105°C. Easy to install with through-hole termination, it provides secure, industry-standard connections for a wide range of electronic projects, ensuring quality and performance.
Order your Molex Series Mighty-SPOX 0532590229 power connector today and ensure reliable, high-current connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 532590229?
You can click on the BUY or RFQ button to purchase 532590229 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 532590229?
You can download the 532590229 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 532590229?
MOLEX
