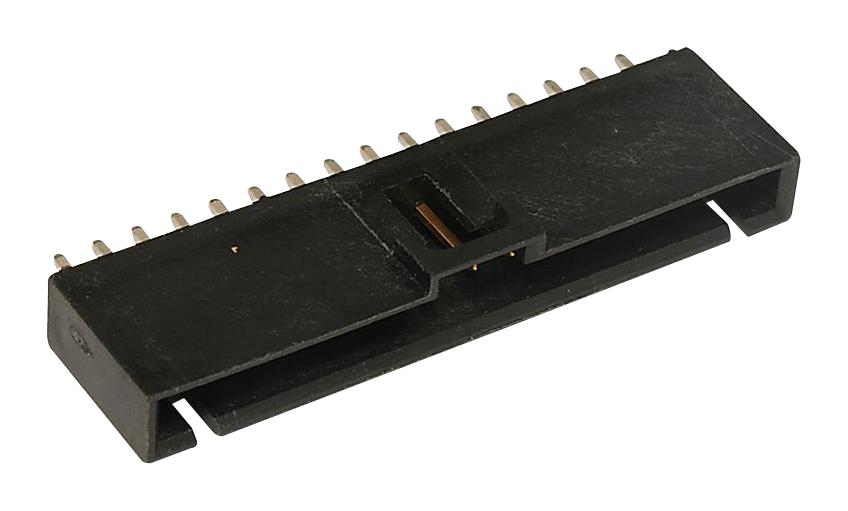

MOLEX 705430046 SL Header, Single Row, Vertical
The MOLEX 70543-0046 is a robust and reliable SL Modular Connector designed for wire-to-board applications. This vertical, single-row header features a 2.54mm pitch and is constructed with a brass and phosphor bronze body, finished with tin plating for enhanced conductivity and corrosion resistance. The shrouded design ensures secure mating and prevents accidental disconnections. It is suitable for a wide range of industrial applications where a durable and high-performance connector is required, offering a maximum current of 3.0A and a voltage rating of 250V. Its vertical orientation and single-row configuration make it easy to integrate into various PCB layouts.
MOLEX 705430046 SL Header, Single Row, Vertical Specifications:
- pitch_mating_interface: 2.54mm
- pitch_termination_interface: 2.54mm
- circuits_loaded: 12
- circuits_maximum: 12
- plating_min_mating: 3.810µm
- plating_min_termination: 3.810µm
- material_resin: High Temperature Thermoplastic
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_metal: Brass, Phosphor Bronze
- operating_temperature_range: -40° to +105°C
- current_max_per_contact: 3.0A
- voltage_max: 250V
- pcb_tail_length: 3.30mm
- number_of_rows: 1
- orientation: Vertical
- pcb_thickness_recommended: 1.60mm
- durability_mating_cycles_max: 25
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- shrouded: Fully
- stackable: No
- surface_mount_compatible: No
- halogen_free_status: Not Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- china_roh: Compliant
- rohs: Compliant
- pcb_locator: No
- pcb_retention: None
