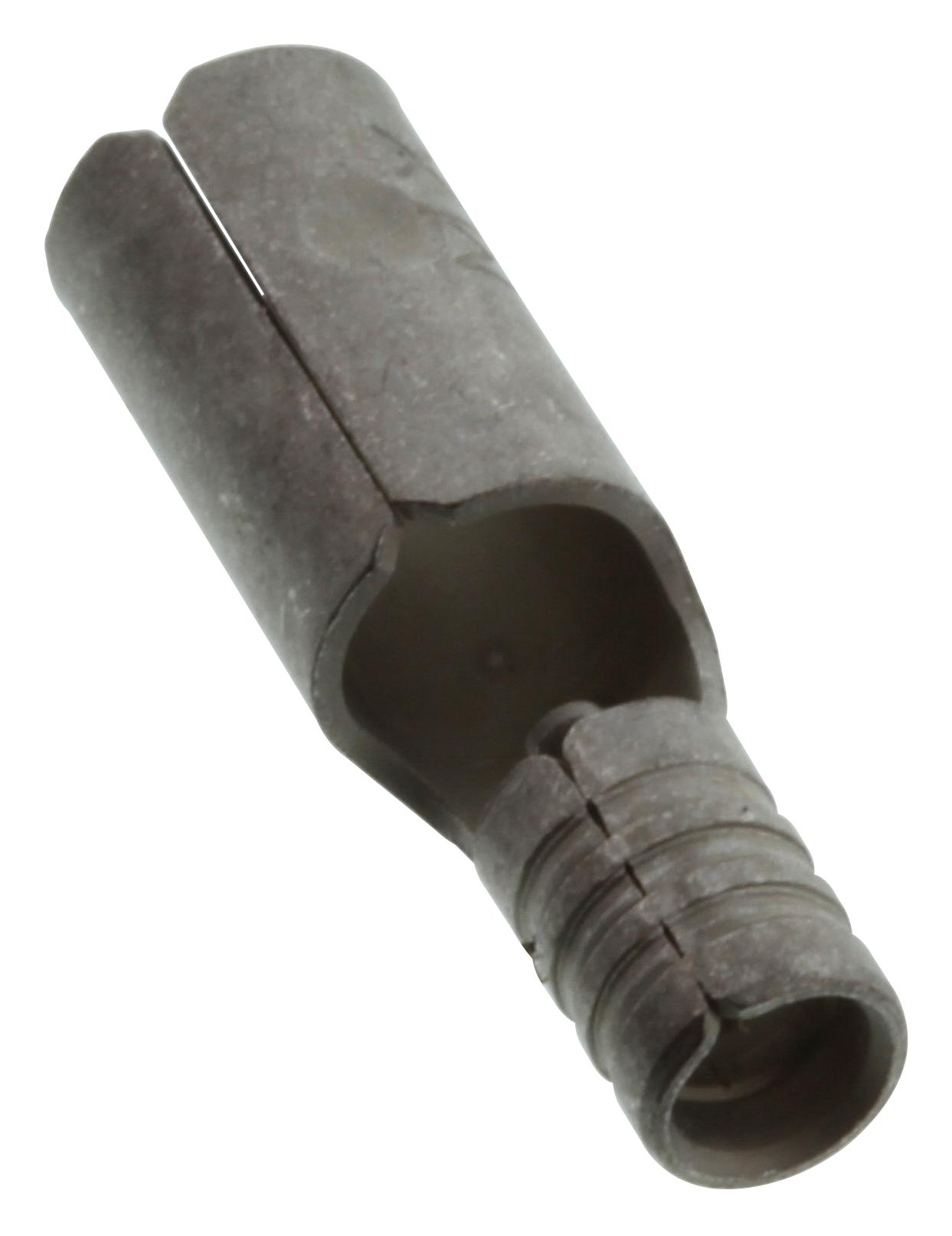

MOLEX 190370004 Krimptite Snap Plug Receptacle
The MOLEX 19037-0004 Krimptite Snap Plug Receptacle is a robust connector solution for applications requiring secure and reliable electrical connections. Designed for use with 14-16 AWG wire, this receptacle features a closed barrel design and straight orientation, ensuring a stable and efficient connection. Constructed from brass with tin plating, it offers excellent conductivity and corrosion resistance. This connector is ideal for various industrial and commercial applications where a quick disconnect and secure termination are essential. It is RoHS compliant and currently in active production, ensuring availability and adherence to environmental standards.
MOLEX 190370004 Krimptite Snap Plug Receptacle Specifications:
- Part Number: 0190370004
- Status: Active
- Overview: Snap Plugs and Receptacles
- Description: Krimptite Snap Plug Receptacle, for 14-16 AWG Wire, Box, 16.26mm Length
- Agency Certification CSA: LR18689
- Agency Certification UL: E152602
- Product Family: Quick Disconnects
- Series: 19037
- Crimp Quality Equipment: Yes
- Insulated: No
- Product Name: Krimptite
- Type: Snap Receptacle
- UPC: 800755059014
- Barrel Type: Closed
- Gender: Female
- Glow-Wire Capable: No
- Insulation: None
- Lock to Mating Part: None
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 0.617/g
- Orientation: Straight
- Packaging Type: Bag
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.30-2.00
- Voltage - Maximum: N/A
- Engineering Number: BB-1122
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Application Tooling Hand Crimp Tool: 640031100
- Application Tooling Hand Crimp Tool 2: 640031200
- Application Tooling Crimp Head: 640071100
- Application Tooling Crimp Head 2: 640071200
