MOLEX 353631060 Wire-to-Board Connector
The Sherlock Wire-to-Board Header offers a reliable 2.00mm pitch with a right-angle design and positive lock mechanism, supporting 10 circuits for efficient wire connections. Constructed from durable materials with UL and CSA certification, it features a PCB retention system, PCB locator, and a temperature range from -40°C to +105°C. Designed for high-performance applications, this connector ensures secure mating, easy installation, and long-lasting durability with up to maximum specified mating cycles. Ideal for compact electronic devices and automation systems needing stable wire-to-board connections.
MOLEX 353631060 Wire-to-Board Connector Specifications:
- Pitch: 2.00mm
- Number of Circuits: 10
- Orientation: Right-Angle
- Material - Resin: UL94V-0 Flame-Retardant Material
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Durability (mating cycles max): Not specified, but designed for high cycle endurance
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 125V
- Color - Resin: Not specified
- PCB Locator: Yes
- PCB Retention: Yes
- Connector Style: Through Hole
- Packaging: Bag

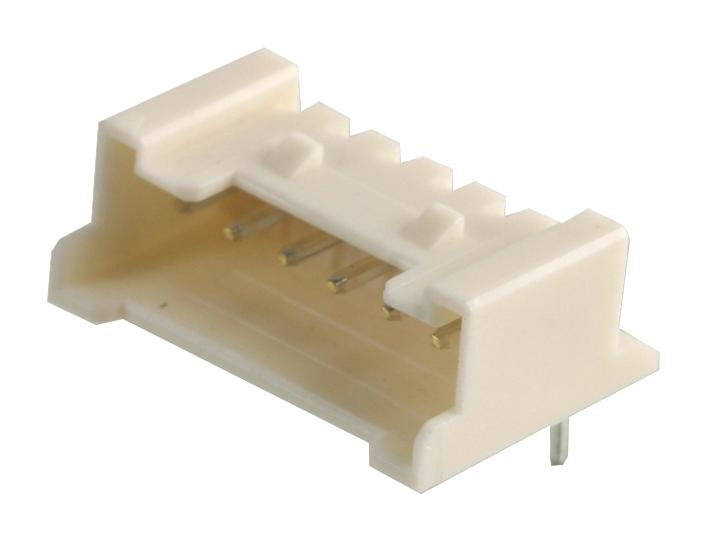

Buy the Buy Molex Sherlock Wire-to-Board Part Number 353631060 Online
Purchase the Molex Sherlock wire-to-board connector with 2.00mm pitch and right-angle orientation today. This durable, UL and CSA certified connector features a positive lock for secure connections, PCB retention for stability, and an operating temperature range from -40°C to +105°C. Ideal for compact electronic devices requiring reliable wire-to-board connections, it supports high mating cycles and is easy to install. Order online now for fast delivery, competitive pricing, and trusted quality for your electronic projects.
Buy Molex Sherlock wire-to-board connector with 2.00mm pitch and positive lock now and experience unmatched reliability and performance.
Frequently Asked Questions
Where can I buy MOLEX 353631060?
You can click on the BUY or RFQ button to purchase 353631060 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 353631060?
You can download the 353631060 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 353631060?
MOLEX
