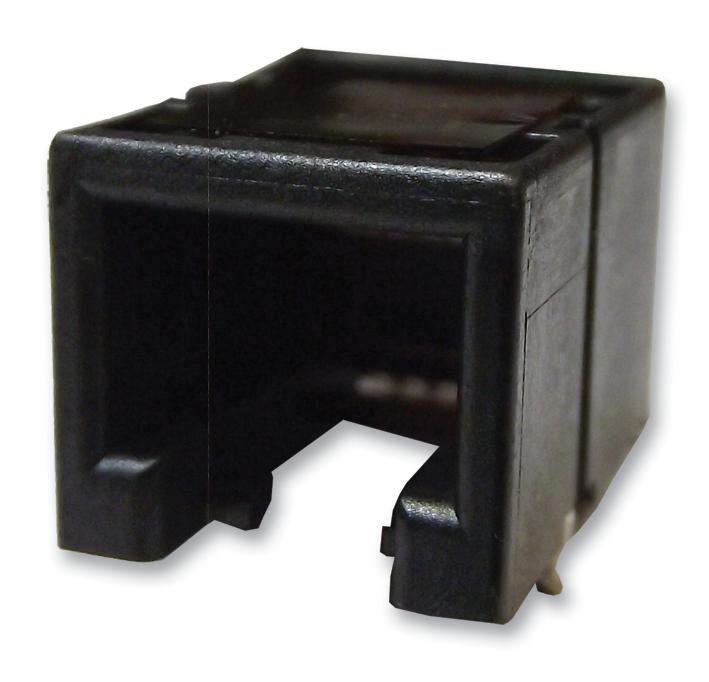

MOLEX 855025011 Modular Jack
This modular jack is a right-angle, surface-mount component designed for power over Ethernet applications. It features a low-profile design with 6/6 contacts, and is compatible with reflow soldering processes. Made from high-temperature thermoplastic with gold-over-palladium-nickel plating, it ensures reliable connections and durability. The jack supports up to 1.5A current per contact and operates within a temperature range of -40°C to +85°C. Its compact footprint and tape & reel packaging make it ideal for automated PCB assembly in networking devices and industrial equipment.
MOLEX 855025011 Modular Jack Specifications:
- Type: Modular Jack, Right-Angle, Surface Mount
- Contacts: 6/6, 1.5A per contact
- Voltage Rating: 125V DC
- Material - Metal: Copper Alloy
- Material - Plating: Gold over Palladium Nickel, Tin
- Resin Color: Black
- Dimensions - Jack Height: 11.50mm
- Temperature Range: -40°C to +85°C
- Packaging: Embossed Tape on Reel
- Process: Reflow capable with a max process temperature of 260°C for 45 seconds
- Certifications: UL, RoHS, China RoHS
- Waterproof / Dustproof: No
- Port Configuration: 1x1, 6/6 positions
- Durability: Up to 2500 mating cycles
- Flammability: UL 94V-0
- Waterproof / Dustproof: No
- PCB Thickness - Recommended: Not specified
Buy the Molex Series 85502 Modular Jack: 855025011
Order the Molex 855025011 modular jack today and enhance your networking devices with a durable, high-quality component. Designed for surface mount applications, this low-profile jack supports PoE standards and offers excellent mating cycle durability. Its robust materials and gold-plated contacts ensure reliable connections even in demanding environments. The tape and reel packaging facilitate easy automation during assembly. Whether for industrial control systems or networking equipment, this modular jack guarantees stable performance and long-lasting operation, making it the ideal choice for your electronic manufacturing needs.
Buy Molex 855025011 now and experience unmatched reliability, durability, and efficient PCB integration for your networking and industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 855025011?
You can click on the BUY or RFQ button to purchase 855025011 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 855025011?
You can download the 855025011 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 855025011?
MOLEX
