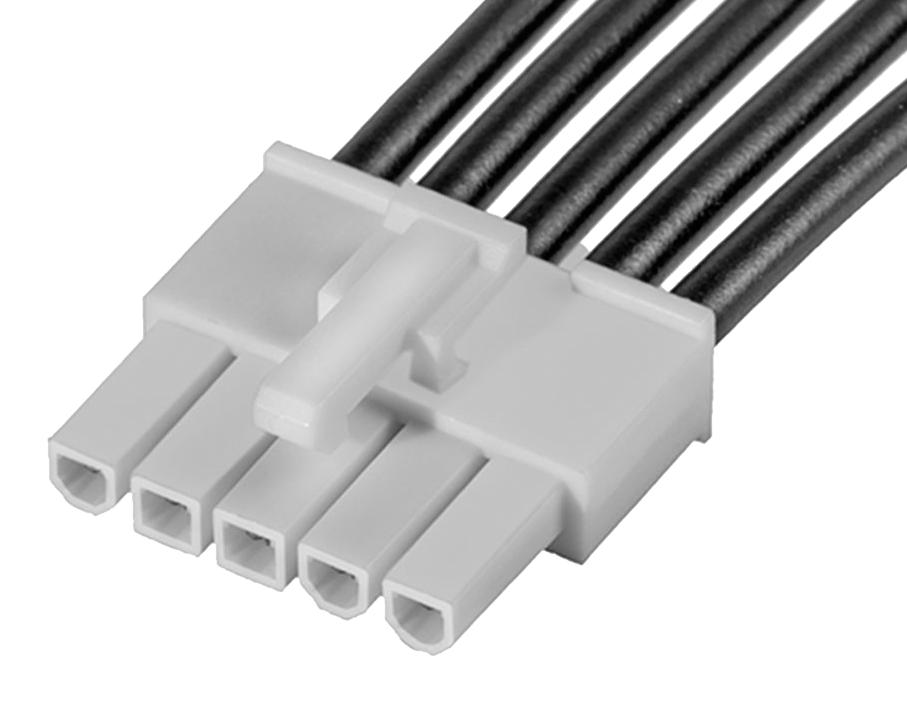

MOLEX 2153221051 Mini-Fit Jr. Cable Assembly
The MOLEX 215322-1051 is a Mini-Fit Jr. male-to-male cable assembly designed for power wire-to-wire applications. This assembly provides a robust and reliable connection with a 150mm length, tin plating on both mating and termination interfaces, and a black nylon resin housing. It's suitable for various industrial applications requiring a secure and efficient power transfer, such as in automotive, consumer electronics, and industrial equipment. The assembly is RoHS compliant and features a halogen-free status, aligning with environmental regulations and sustainability initiatives.
MOLEX 2153221051 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 150.00mm
- circuits_loaded: 5
- color: Black
- gender: Male-Male
- material_metal: Brass
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: Nylon
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264597338
- net_weight_g: 23.450
- material_info: Not Contained Per - D(2020)4578-DC (25 June 2020)
