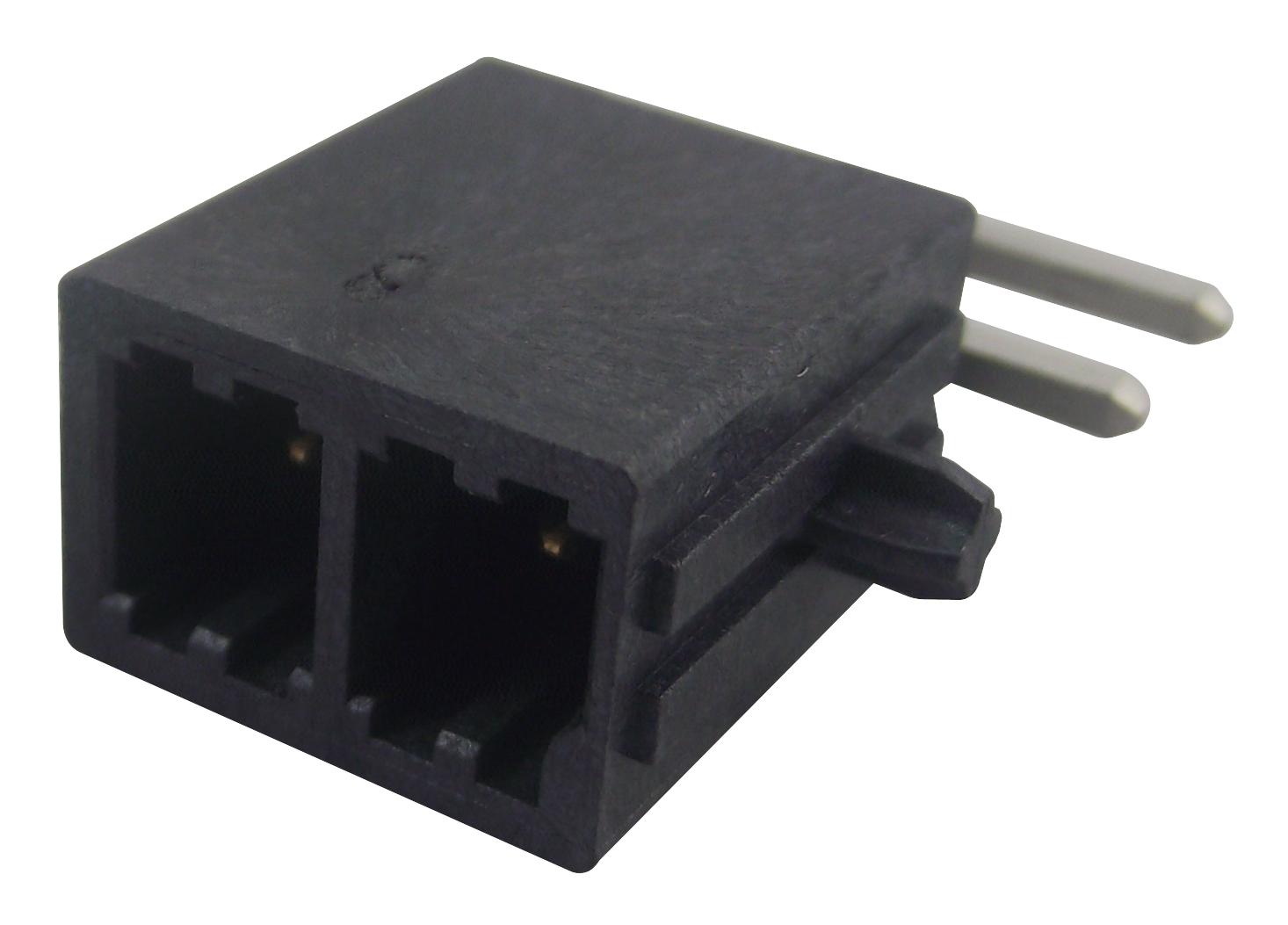

MOLEX 1720640002 Power Connector
The Mega-Fit Power Connectors part number 1720640002 features a 5.70mm pitch, right-angle header with 2 circuits and 0.381µm gold plating. Designed for power and wire-to-board applications, it offers high temperature tolerance from -40°C to +120°C, UL 94 V-0 flammability rating, and CSA and UL certifications. The connector is made from high-temperature thermoplastic with copper contacts, and it includes PCB retention and location features for secure mating. Suitable for high-current applications with a maximum of 23.0A per contact and 600V maximum voltage, it is compatible with through-hole PCB mounting and features a tray packaging for easy handling.
MOLEX 1720640002 Power Connector Specifications:
- Pitch - Mating Interface: 5.70mm
- Circuits (Loaded): 2
- Maximum Circuits: 2
- Color - Resin: Black
- Flammability: UL 94 V-0
- Material - Metal: Copper
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Mated Height: 16.78mm
- Temperature Range - Operating: -40°C to +120°C
- Peak Current per Contact: 23.0A
- Voltage - Maximum: 600V
- First Mate / Last Break: Yes
- Surface Mount Compatible (SMC): No
- Unmated Height: 14.53mm
- PCB Thickness - Recommended: 1.57mm, 2.36mm
- Packaging Type: Tray
- Lock to Mating Part: Yes
- PCB Retention: Yes
Buy the Buy Molex Mega-Fit Power Connectors Part Number 1720640002 Online
Secure your electronic projects with the Molex Mega-Fit Power Connector. Featuring a 5.70mm pitch, gold-plated contacts, and a high temperature range from -40°C to +120°C, this connector provides reliable power delivery up to 23A per contact and 600V. Its rugged thermoplastic housing and PCB retention ensure durability and ease of assembly. Ideal for power applications requiring robust connection and safety certifications including UL and CSA, order this tray-packed connector online for quick delivery and superior performance.
Order your Molex Mega-Fit Part Number 1720640002 today and ensure high-current power connection reliability for your projects.
Frequently Asked Questions
Where can I buy MOLEX 1720640002?
You can click on the BUY or RFQ button to purchase 1720640002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1720640002?
You can download the 1720640002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1720640002?
MOLEX
