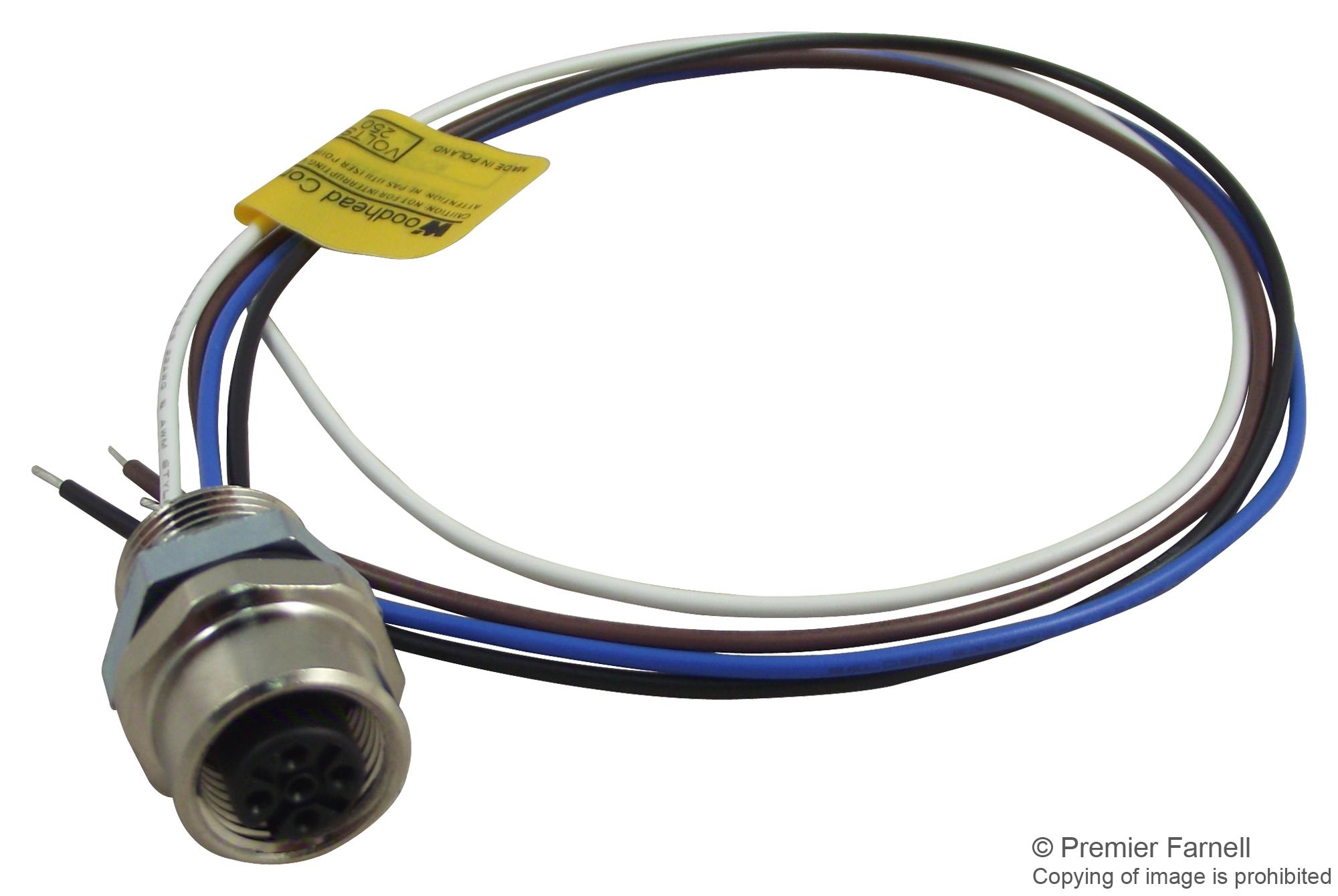

MOLEX 8R4E30E03C3003 Micro-Change M12 Connector
The Micro-Change M12 receptacle by Molex is a 4-pole, female, straight connector designed for industrial automation and equipment. It features an IP67 rating for dust and water resistance, NEMA 6 compliance, and a robust nickel-plated brass construction. The connector has a 0.30-meter length, M14x1.0 mounting thread, and is suitable for operating temperatures from -20°C to +80°C. It supports currents up to 4.0A per contact and a maximum voltage of 250V AC/DC, making it ideal for reliable power and signal connections in harsh environments.
MOLEX 8R4E30E03C3003 Micro-Change M12 Connector Specifications:
- Connector Type: Micro-Change M12
- Poles: 4
- Gender: Female
- Orientation: Straight
- Cable Length: 0.30 meters (11.81 inches)
- Mounting Thread: M14 x 1.0
- Coupling Type: Internal Thread
- Material: Nickel-plated Brass
- IP Rating: IP67
- NEMA Rating: NEMA 6
- Temperature Range: -20°C to +80°C
- Wire Size: AWG 22
- Electrical Rating: 4.0A per contact, 250V AC/DC
- Suitable for leads, UL 1061 cables
- Net Weight: 25.96 grams
Buy the Molex Series 120011 Micro-Change M12: 8R4E30E03C3003
Discover the highly durable Molex Micro-Change M12 connector with four poles, IP67 waterproof rating, and a robust nickel-plated brass build. Perfect for industrial automation, this straight female connector measures 0.30 meters in length, features M14x1.0 mounting threads, and operates efficiently within -20°C to +80°C. It provides reliable power and signal transmission with a maximum of 4.0A per contact at 250V. Buy this industrial-grade connector online now for dependable performance in demanding conditions.
Order your Molex Series Micro-Change M12 connector today and ensure reliable, water-resistant connections in harsh industrial environments.
