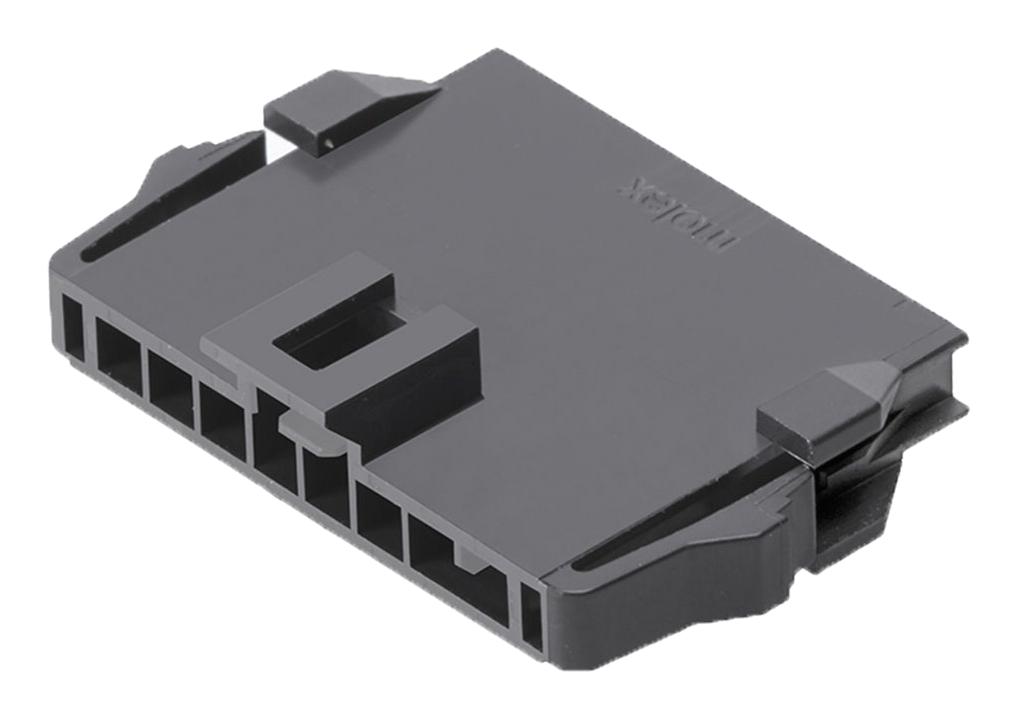

MOLEX 2014441210 Nano-Fit Power Connectors
Nano-Fit Power Connectors provide compact, fully isolated headers with mechanical keying options and color-coding for quick, accurate assembly. These connectors deliver high performance with low mate force, stable multi-point contact, and optional terminal position assurance retainers to prevent backout. Their small size and design enable space-efficient PCB layouts, reducing costs and improving signal integrity. Suitable for various applications including consumer electronics, automotive, aerospace, industrial, and medical devices, they ensure robust, reliable connections with easy assembly and disconnection features.
MOLEX 2014441210 Nano-Fit Power Connectors Specifications:
- Voltage (Max): 250V
- Current (Max): 6.54A
- Contact Resistance: 10 milliohms change over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Insertion Force to PCB: N/A
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles (tin), 50 cycles (gold)
- Housing Material: Receptacle in Nylon UL 94V-0, Header in LCP UL 94V-0
- Contact Material: High-Conductivity Copper
- Plating: Tin, Gold, or Nickel
- Operating Temperature: -40 to +105°C (tin), -40 to +115°C (gold)
- Connector Type: Wire-to-Wire and SMT, Single-Row and Dual-Row
- PCB Thickness Range: 1.60 to 2.40mm
- RoHS & Halogen Free: Yes
- Glow-Wire Capable: Yes
Buy the Molex Series Nano-Fit Power: 2014441210
Purchase Nano-Fit Power Connectors easily online and benefit from their compact design, high reliability, and space-efficient features. These connectors are ideal for automated assembly with embossed tape options and ensure consistent performance in demanding applications like consumer electronics, automotive, aerospace, industrial, and medical systems. Their keying options, color coding, and terminal position assurance retainers prevent cross-mating, while low mate force and high durability enable quick, secure connections. Buy now to enhance your device’s connectivity with proven quality and easy online ordering.
Order your Molex SeriesNano-Fit Power connectors today and ensure reliable, space-saving connections for your electronic projects.
