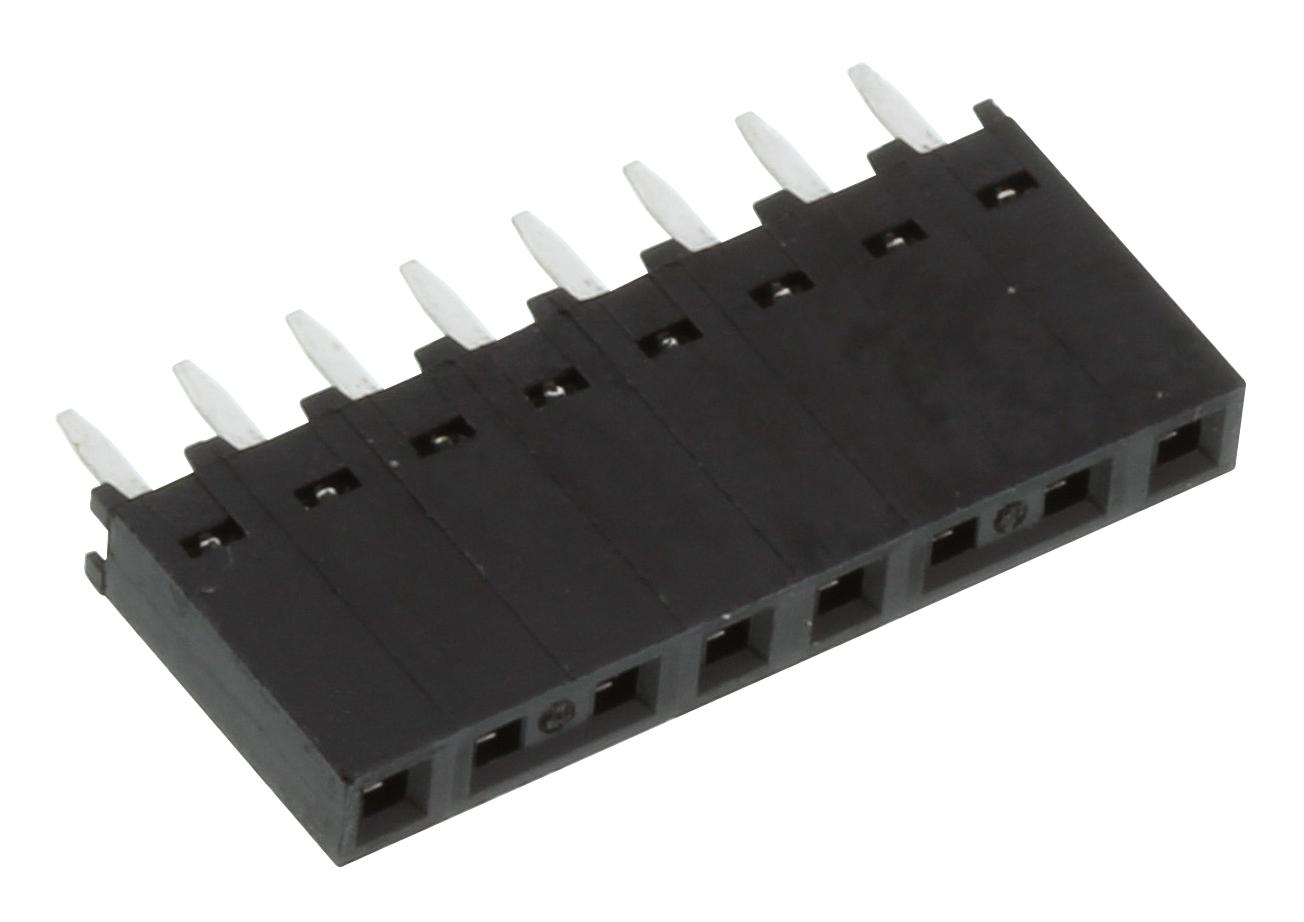

MOLEX 901471108 Signal PCB Connector
The C-Grid PC Board Connector is a single-row, vertical signal connector with 8 circuits, designed for reliable board-to-board connections. Constructed from phosphor bronze with tin plating, it supports an operating temperature range of -55°C to +105°C, ensuring durability in various environments. Its 2.54mm pitch and through-hole termination enable secure mounting on PCBs. Compatible with specific mating parts, it is RoHS, Reach, and China RoHS compliant, and suitable for applications requiring UL and CSA certifications, providing a robust solution for electronic interconnections.
MOLEX 901471108 Signal PCB Connector Specifications:
- Circuits: 8
- Maximum Circuits: 8
- Color: Black
- Flammability: 94V-0
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 0.693 g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 2.90 mm
- PCB Thickness - Recommended: 1.60 mm
- Temperature Range - Operating: -55°C to +105°C
- Termination Interface: Style - Through Hole
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 350V
- Solder Process Data: Wave soldering compatible
- Agency Certification: UL, CSA
- RoHS: Compliant
- Recycling and environmental standards: China RoHS, Reach SVHC not contained
- Packaging Type: Tube
- Pitch - Mating & Termination Interface: 2.54 mm
Buy the Buy Molex C-Grid PC Board Connector Part Number 901471108 Online
Enhance your electronic assemblies with the Molex Signal PCB Connector, featuring 8 circuits, a 2.54mm pitch, and tin-plated phosphor bronze contacts. Designed for durability in environments from -55°C to +105°C, it supports robust PCB mounting through a through-hole interface. Certified by UL and CSA, and compliant with RoHS, Reach, and China RoHS standards, this connector ensures a secure, environmentally friendly connection for your electronic projects. Purchase online today for reliable performance and easy integration into your designs.
Get Molex 901471108 today—designed for reliable board-to-board signal connections with UL and CSA certifications.
Frequently Asked Questions
Where can I buy MOLEX 901471108?
You can click on the BUY or RFQ button to purchase 901471108 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901471108?
You can download the 901471108 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901471108?
MOLEX
