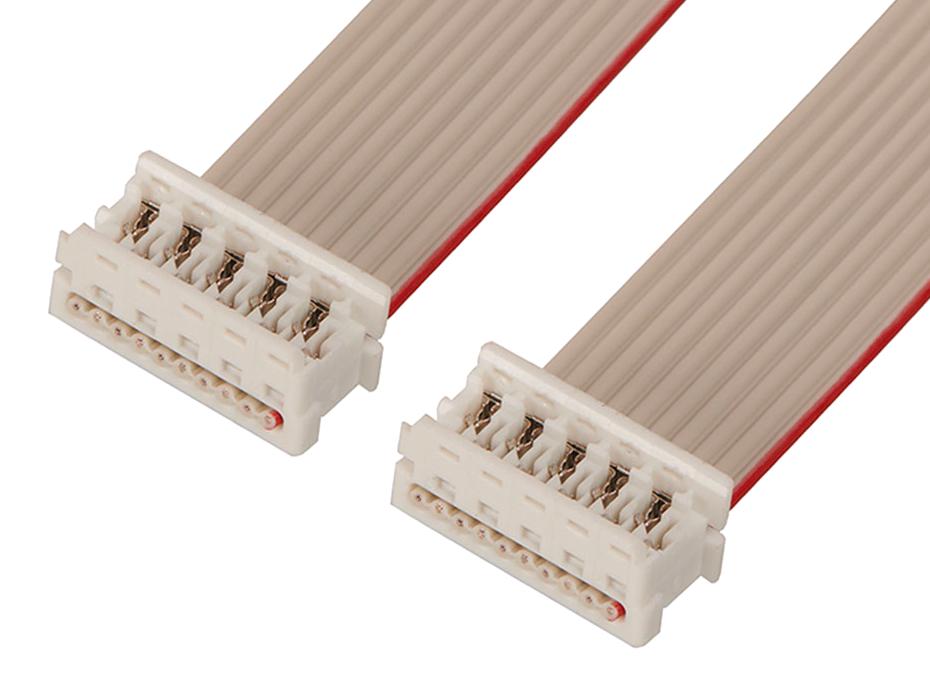

MOLEX 923151016 Ribbon Cable Assembly
The Picoflex ribbon cable assemblies provide reliable, polarization-enhanced connections for electronic projects and industrial applications, supporting from consumer electronics to renewable energy systems. Designed with secure one-piece housings, dual-beam contact points, visual inspection windows, and optional gold plating for durability, these assemblies are rated for up to 250V and 1.2A, with a temperature range of -40°C to +105°C. Suitable for daisy chaining, they feature polyester housings, phosphor bronze contacts, and tin plating, ensuring safety and precision in various environments with at least 30 mating cycles.
MOLEX 923151016 Ribbon Cable Assembly Specifications:
- Cable Length: 160.00mm
- Circuits: 10
- Color: Natural
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating: Tin
- Material - Resin: Polyester
- Net Weight: 1.398g
- Packaging: Bag
- Pitch – Mating Interface: 1.27mm
- Plating minimum – Mating and Termination: 2.032μm
- Wire Insulation Diameter: N/A
- Wire Size: 28 AWG
- Electrical Current per Contact: 1.2A
- Voltage maximum: 250V
- Operating Temperature Range: -40°C to +105°C
- UL and CSA Certified
- Waterproof/Dustproof: No
- Lock to Mating Part: None
- Application: Consumer electronics, industrial automation, medical devices, renewable energy
Buy the Molex Series 92315 Ribbon Cable Assembly: 160mm, 10 Circuits, Tin Plating
Enhance your electronic projects with the Molex Series 92315 Ribbon Cable Assembly. Featuring polarized connectors, secure one-piece housing, dual-beam contacts, and optional gold plating, this assembly is designed for durability and precision. Rated for 250V and 1.2A, with a temperature range of -40°C to +105°C, it ensures safe operation across various environments. The 160mm length, 10 circuits, and 1.27mm pitch make it ideal for industrial automation, consumer electronics, medical devices, and renewable energy systems. Order now for fast delivery and reliable performance.
Order your Molex Series 92315 Ribbon Cable Assembly today and ensure reliable connections in your electronic and industrial projects with high-quality build and safety features.
Frequently Asked Questions
Where can I buy MOLEX 923151016?
You can click on the BUY or RFQ button to purchase 923151016 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923151016?
You can download the 923151016 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923151016?
MOLEX
