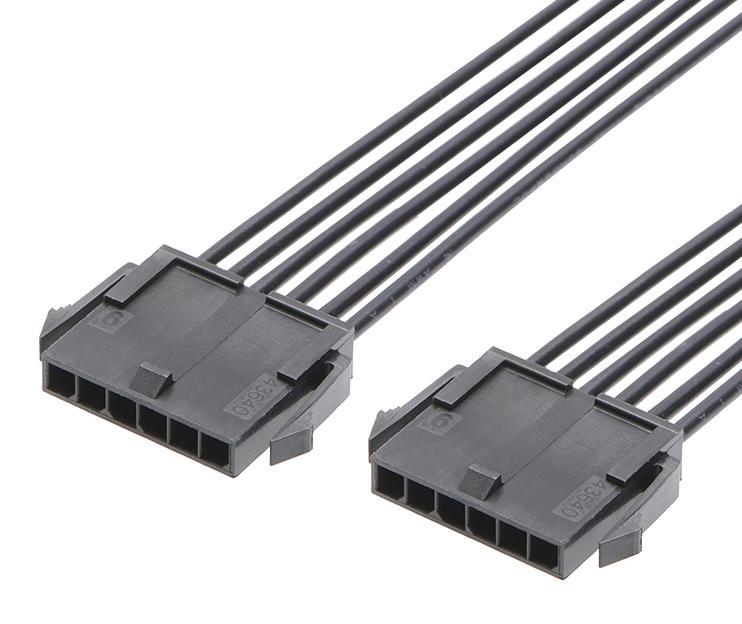

MOLEX 2147501063 Micro-Fit 3.0 Cable Assembly
The MOLEX 214750-1063 is a Micro-Fit 3.0 female-to-female cable assembly designed for robust power and signal transmission in various applications. It boasts a 600mm length and 6 circuits, making it suitable for connecting multiple components. The tin plating on both mating and termination interfaces provides excellent conductivity and corrosion resistance. Constructed with phosphor bronze and nylon materials, this assembly offers durability and reliability in demanding industrial environments. It is commonly used in wire-to-board and wire-to-wire connections, providing a secure and efficient solution for power distribution and signal routing.
MOLEX 2147501063 Micro-Fit 3.0 Cable Assembly Specifications:
- overview: Micro-Fit Connector System
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Micro-Fit 3.0 Both Ends
- cable_length: 600.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight: 42.404/g
- number_of_rows: 1
- pitch_mating_interface: 3.00mm
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: No
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: Discrete Wire, UL 10002
- current_maximum_per_contact: 8.5A
- upc: 193264584987
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_plug_housings: 43640, 200875, 43650
- drawing_number: 2147501061-000
