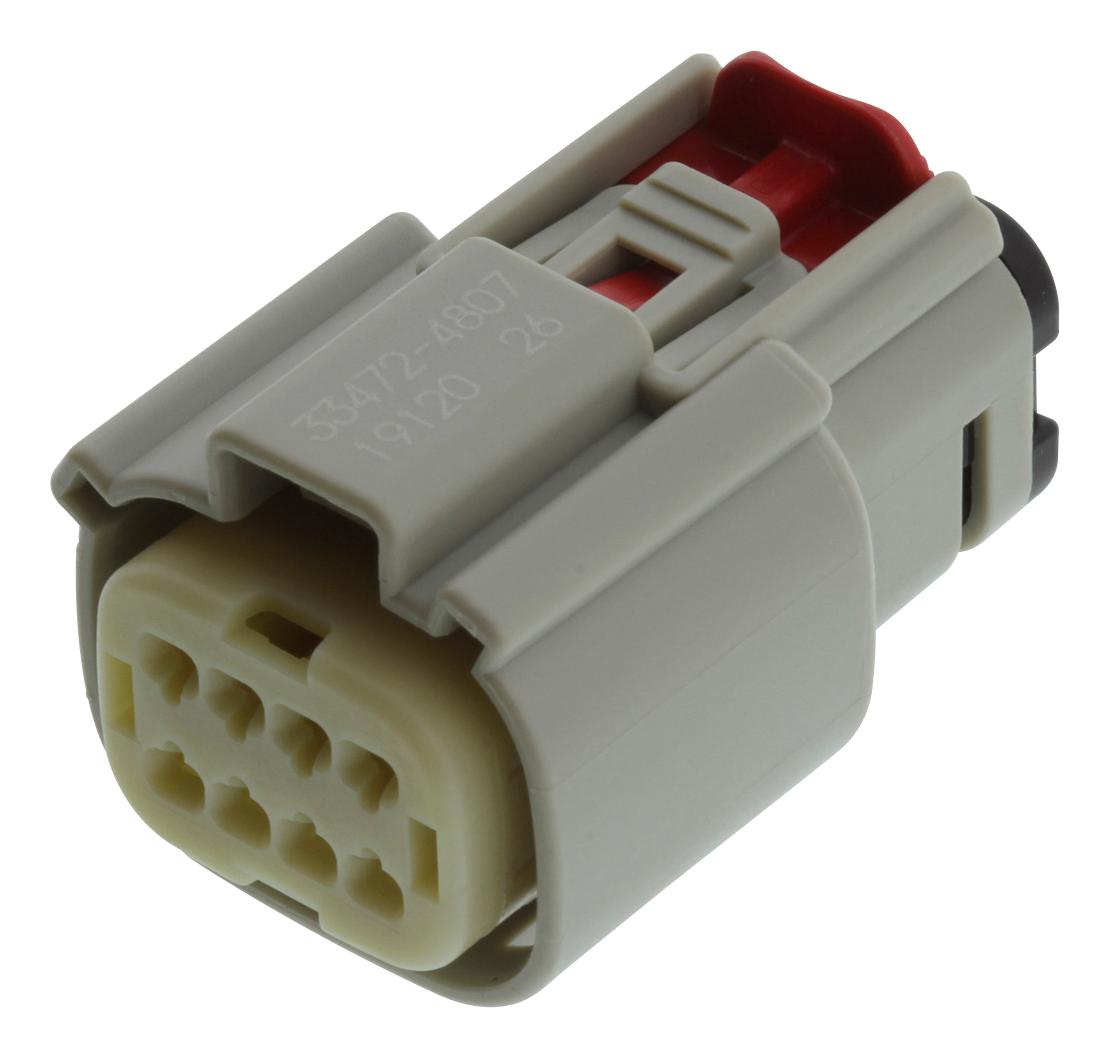

MOLEX 334724807 Sealed Female Connector
The MOLEX 33472-4807 is a robust sealed female connector designed for demanding applications within the MX150 Sealed and Unsealed Connector System. This connector offers 8 circuits and incorporates polarization B for correct mating orientation. It includes connector position assurance (CPA) to ensure a secure and reliable connection. Constructed with modified polystyrene, it's suitable for wire-to-board and wire-to-wire applications, operating effectively within a temperature range of -40°C to +125°C. Its halogen-free status and compliance with various environmental regulations make it a versatile choice for automotive, industrial, and consumer electronics applications.
MOLEX 334724807 Sealed Female Connector Specifications:
- overview: MX150 Sealed and Unsealed Connector System
- description: MX150 Sealed Female Connector, Dual Row, 8 Circuits, Polarization B, with Connector Position Assurance, Light Gray
- circuits_maximum: 8
- color_resin: Gray (Light)
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Modified Polystyrene
- alloy: N/A
- net_weight_g: 11.718
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- eu_elv_compliant: Yes
- eu_rohs_compliant: Yes
- china_rohs_compliant: Yes
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: MX150 Male Sealed Connector, MX150 Right-Angle Header, MX150 Male Bulkhead Twist-Lock Sealed Connector
- series: 33472
