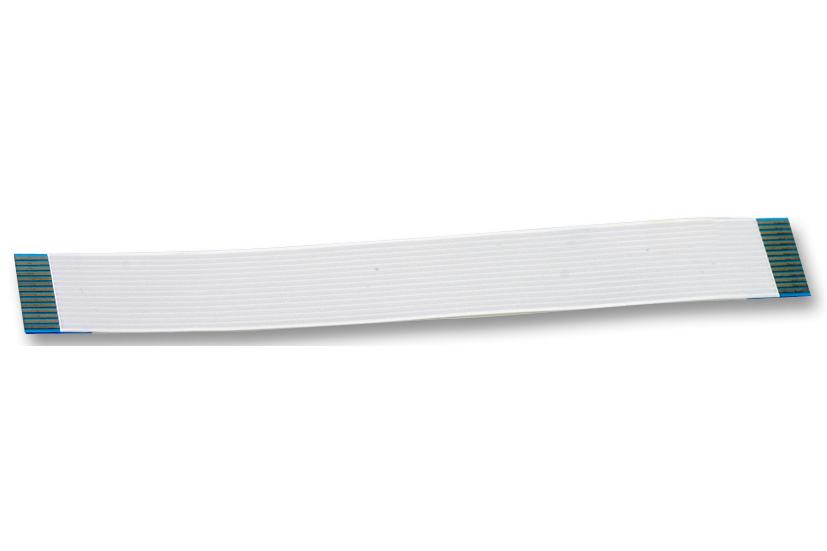

MOLEX 982670277 Flexible FFC Jumper
This premium 1.00mm pitch Premo-Flex FFC jumper features same-side contacts (Type A) with 12 circuits and a cable length of 0.152 meters. It is constructed with tin (Sn) plating for enhanced durability and reliable electrical connections. Designed for flexible applications, this jumper supports a voltage maximum of 60V AC and a maximum current of 1.2A per contact, operating efficiently within a temperature range of -40°C to +105°C. It is RoHS compliant and suitable for use with various flat flex cables in electronic assemblies and connectors.
MOLEX 982670277 Flexible FFC Jumper Specifications:
- Pitch: 1.00mm
- Circuits: 12
- Cable Length: 0.152 meters
- Operating Temperature Range: -40°C to +105°C
- Voltage Maximum: 60V AC
- Current per Contact: 1.2A
- Wire Type: Flat Flex Cable
- Material: Tin-plated contacts
- Certification: RoHS Compliant, ELV Not Relevant, Halogen-Free
- Packaging: Refer to PK-98267-001-001 specification
- Reference Drawing: PS-98267-001-001
- Compatibility: Use with FFC/FPC connectors, match plating for optimal connection
Buy the Molex 982670277 – Reliable Flexible FFC Jumper for Industrial Applications
Order the Molex Flexible FFC Jumper now for dependable electrical connectivity in your electronic projects. With a 1.00mm pitch and 12 circuits, it offers a compact, reliable solution for flexible circuit connections. Its tin-plated contacts ensure corrosion resistance and long-term durability, making it suitable for a wide temperature range from -40°C to +105°C. Ideal for use with various flat flex cables and connectors, this RoHS-compliant component enhances your assembly’s performance and reliability. Purchase online today for fast delivery and consistent quality.
Get Molex 982670277 today—built for flexible, reliable electronic connections in industrial and consumer equipment.
Frequently Asked Questions
Where can I buy MOLEX 982670277?
You can click on the BUY or RFQ button to purchase 982670277 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 982670277?
You can download the 982670277 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 982670277?
MOLEX
