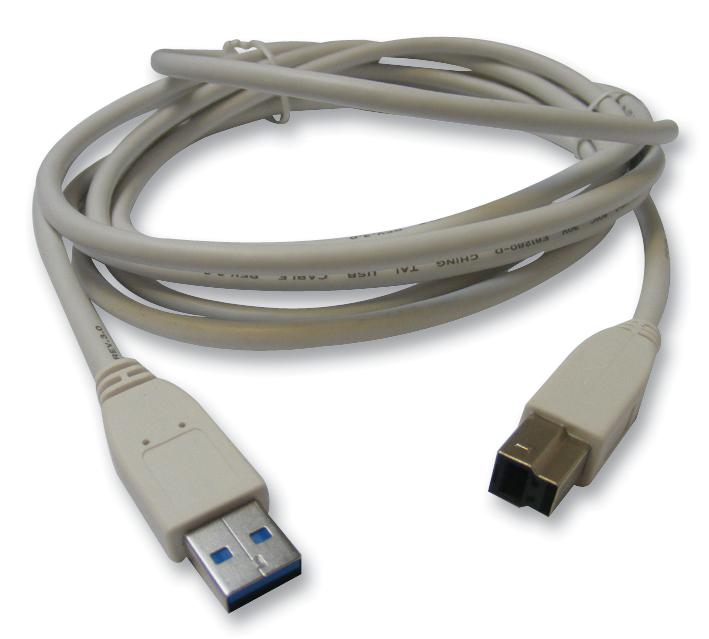

MULTICOMP PRO 11998871 USB 3.0 Cable Assembly
This USB 3.0 cable assembly features Type A to B connectors with a length of 3 meters, suitable for high-speed data transfer and reliable connectivity in computing and peripheral applications. The assembly has a durable PVC jacket, high-quality Ni-plated connectors, and passes rigorous electrical testing including open, short, and insulation resistance tests. It is RoHS compliant, with detailed wiring pinouts, and designed for efficient signal transmission, making it ideal for professional, industrial, and data center environments requiring robust and high-performance USB connections.
MULTICOMP PRO 11998871 USB 3.0 Cable Assembly Specifications:
- Connector Type A: USB 3.0 Type A male, 9 PIN contacts, Ni-plated shell
- Connector Type B: USB 3.0 Type B male, 9 PIN contacts, Ni-plated shell
- Cable Length: 3 meters (3000 mm)
- Outer Diameter: 5.24 mm ± 0.15 mm
- Jacket Material: PVC
- Cable Insulation: Foam-PE + D.W (7/0.127 T.C), Polyolefin, AL/MY, Hot-melt-mylar
- Cable Conductors: #28 (7/0.127 T.C) x 1P INS, #28 (7/0.127 T.C) x 2C INS
- Wire Sheath: PVC
- Electrical Testing: 100% open, short, and MIS wire test, Max contact resistance 3mΩ, Min insulation resistance 10MQ, HI-POT 300V
- Pin Assignments: Based on standard USB 3.0 pinout, including data lines, power, and ground signals
- Hood Material: Molded PVC, White color
- RoHS compliant
- Certification: Electrical tests including contact and insulation resistance
- Part Numbers: 11998870 (1.8M), 11998871 (3M)
Buy the Multicomp Series USB 3.0 Cable: 11998871
Purchase the multicomp Series USB 3.0 cable assembly online today and ensure your data transfer needs are met with a reliable, high-quality connection. With a length of 3 meters, durable PVC jacket, and Ni-plated connectors, this cable guarantees excellent performance and durability. Fully tested for electrical performance including open, short, and insulation resistance, it is RoHS compliant and suitable for demanding environments such as data centers or industrial setups. Get yours now for fast, dependable connectivity.
Order your multicomp Series USB 3.0 cable assembly today and enjoy reliable high-speed data transfer for your professional or industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 11998871?
You can click on the BUY or RFQ button to purchase 11998871 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 11998871?
You can download the 11998871 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 11998871?
MULTICOMP PRO
