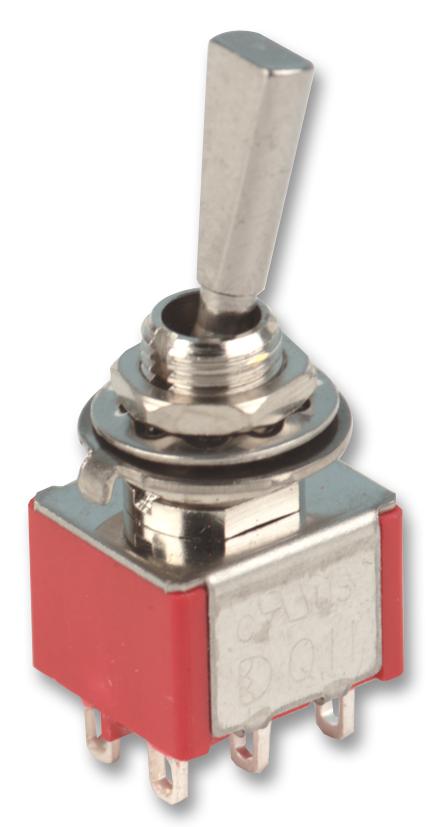

MULTICOMP PRO 1MS3T6B11M1QE SPDT Miniature Switch
The MULTICOMP PRO 1MS3T6B11M1QE is a miniature toggle switch ideal for applications requiring a compact and reliable switching solution. Constructed with durable materials like diallyl phthalate (DAP) for the case, brass for the actuator and bushings, and stainless steel for the housing, this switch provides excellent mechanical strength and resistance to environmental factors. It's suitable for use in a wide range of electronic devices, control panels, and industrial equipment where a small footprint and dependable operation are essential. The switch's SPDT configuration allows for versatile circuit control, making it a valuable component in numerous designs.
MULTICOMP PRO 1MS3T6B11M1QE SPDT Miniature Switch Specifications:
- Contact Rating: Dependent upon content material
- Mechanical Life: 40,000 make and break cycles
- Max. Contact Resistance: 10mΩ
- Initial Voltage: 2 to 4V DC
- Current: 10mA for both silver and gold plated contacts
- Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Case: Diallyl phthalate (DAP) (UL94v-0)
- Actuator: Brass, chrome plated
- Bushing: Brass, nickel plated
- Housing: Stainless steel
- Switch Support: Brass, tin plated
- Terminal/Contact: Silver or gold plated
Buy the 1MS3T6B11M1QE MULTICOMP PRO SPDT Miniature Switch | myMectronic
Purchase the MULTICOMP PRO 1MS3T6B11M1QE SPDT Miniature Switch securely online for your project needs.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1MS3T6B11M1QE?
You can click on the BUY or RFQ button to purchase 1MS3T6B11M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1MS3T6B11M1QE?
You can download the 1MS3T6B11M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1MS3T6B11M1QE?
MULTICOMP PRO
