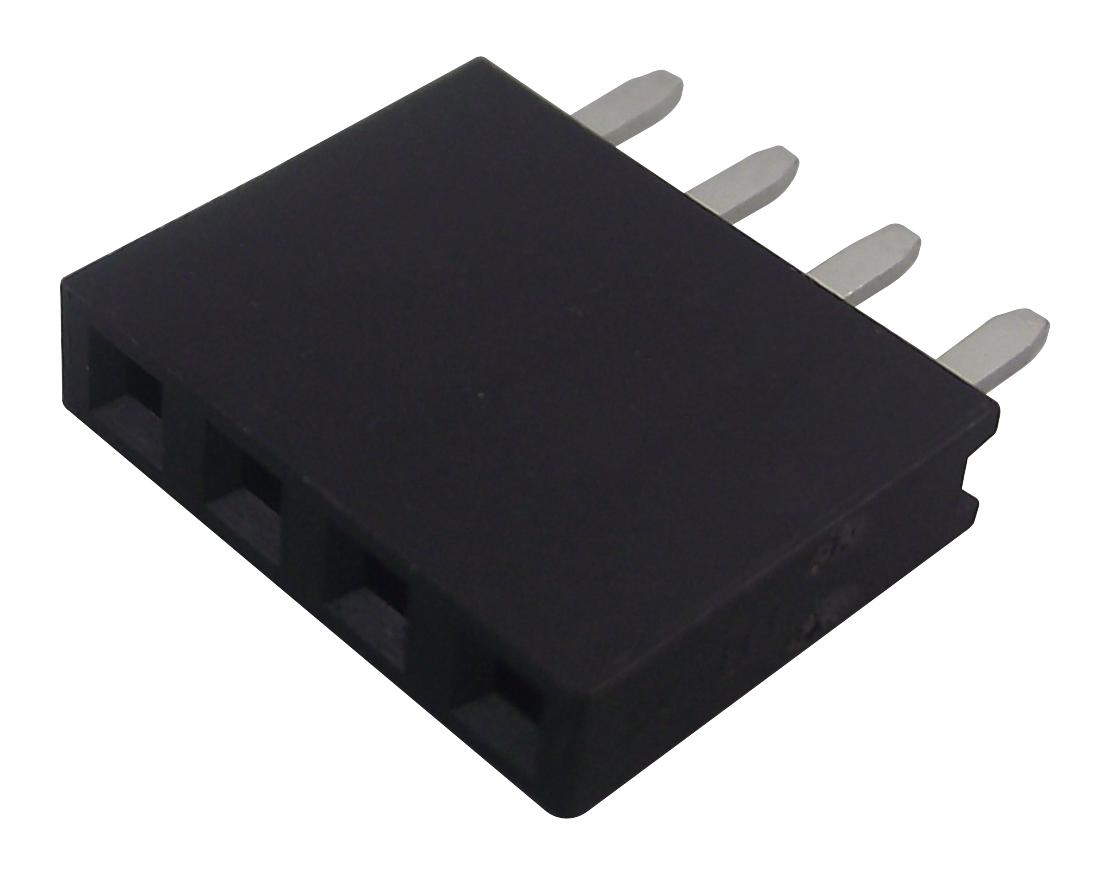

MULTICOMP PRO 2212S04SG85 PCB Socket
The 2212S-04SG-85 is a 4-way, 1-row, 2.54mm pitch PCB straight socket featuring selective gold-plated copper alloy contacts and black PBT insulation. Designed for board-to-board connections, it has through-hole termination. The socket supports rated current of 3A at 250V, with a maximum contact resistance of 20 milliohms and an insulation resistance of at least 1000 megaohms. It operates within a temperature range of -40°C to +105°C. Suitable for industrial applications, it is part of the Multicomp Pro product line, which is rated 4.6 out of 5 stars, and comes with a 12-month limited warranty. Delivery may be affected by extended lead times due to high market demand.
MULTICOMP PRO 2212S04SG85 PCB Socket Specifications:
- Pitch: 2.54mm
- Number of contacts: 4
- Material: Copper alloy
- Finish: Selective gold plating
- Insulator: PBT, Black
- Current Rating: 3A
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ
- Insulation Resistance: ≥1000 MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Dimensions (millimetres): B: 8.5, A: 5.58, B: 2.54
- RoHS Compliant: Yes
Buy the Multicomp Series PCB Socket: 2.54mm Pitch 4-Way Connectors: 2212S04SG85
Order the PCB Socket with 2.54mm pitch, 4-way configuration, and gold-plated contacts now. Designed for durability and precise board-to-board connections, this high-quality socket supports 3A current at 250V and operates from -40°C to +105°C. It features black PBT insulation, high insulation resistance, and is RoHS compliant. Perfect for industrial electronics, the socket ensures reliable performance and easy installation. Shop online now to secure fast delivery and exceptional quality for your PCB assembly needs.
Get Multicomp Series PCB Socket 2212S04SG85 today—built for reliable electrical connections with gold-plated contacts and wide temperature range.
