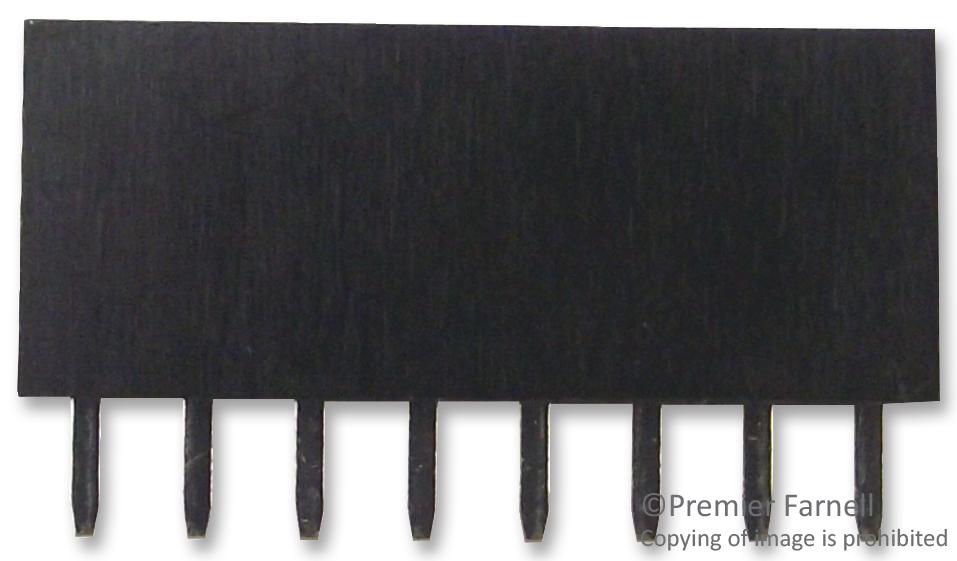

MULTICOMP PRO 2212S24SG85 PCB Socket Single Row
The MULTICOMP PRO 2212S-24SG-85 is a 2.54mm pitch PCB socket designed for single-row applications. Constructed with a PBT insulator and copper alloy contacts with selective gold plating, this socket ensures reliable electrical connections and resistance to corrosion. It is ideal for applications in industrial control systems, automation equipment, and consumer electronics where a secure and compact connection is required. The socket's straight design simplifies integration into PCB layouts, and its robust construction guarantees long-term performance.
MULTICOMP PRO 2212S24SG85 PCB Socket Single Row Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1,000 MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT
- Contact Material: Copper alloy
- Contact Finish: Selective gold plated
- Number of Contacts: 24
- A Dimension: 61.46mm
- B Dimension: 58.42mm
- General Tolerance X: ±0.2
- General Tolerance XX: ±0.15
