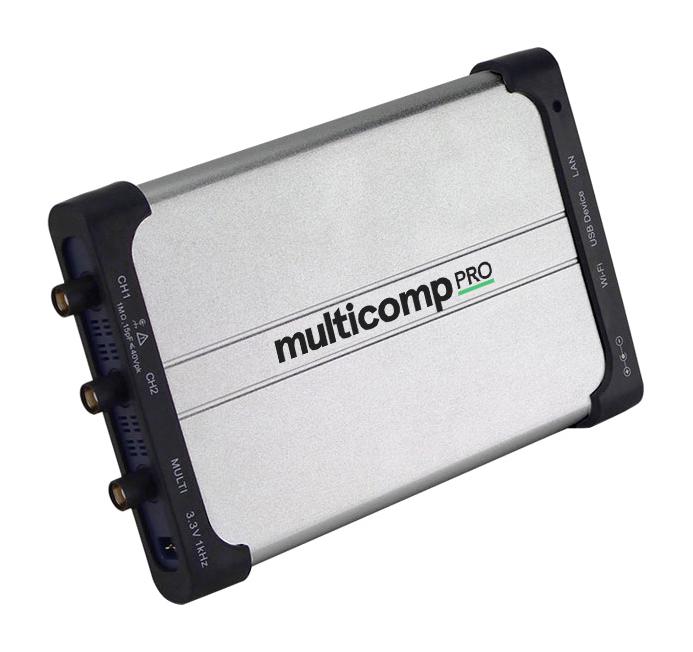

MULTICOMP PRO MP720646US Dual-Channel PC Oscilloscope
The MP720646 is a two-channel, 100MHz bandwidth, 8-bit PC-based oscilloscope with an integrated signal generator. It features a 10 million sample record length, user-friendly interface, multiple trigger options, and is USB bus-powered. The device has an ultra-thin, portable design and includes a standard 5MHz signal generator. It supports real-time sampling at 1GSa/s, displays waveforms and XY plots simultaneously, and supports SCPI protocol and compatibility with LabVIEW. Secondary development is possible on Windows, Linux, Android, and iOS platforms. Its power is supplied via USB Type-C, supporting 5-15V input for faster data transmission. Contents include the PC oscilloscope, power cord, AC/DC adapter, USB Type-C cable, Q9 cable, probes, and software CD.
MULTICOMP PRO MP720646US Dual-Channel PC Oscilloscope Specifications:
- Bandwidth: 100MHz
- Channels: 2 scope + 1 function generator
- Sample Rate: 1GS/s
- Record Length: 10M
- Input Coupling: DC, AC, ground
- Input Impedance: 1 MΩ ±2%, in parallel with 15 pF ±5 pF
- Vertical Sensitivity: 2mV/div to 5V/div
- Vertical Resolution: 8 bits
- Max Input Voltage: 40 V (DC + AC Peak)
- Probe Attenuation: 1X to 1000X
- Bandwidth of the function generator: 5 MHz
- Waveforms: Sine, Square, Ramp, Pulse
- Rise Time: <3.5 ns
- Trigger Types: Edge, Video, Slope, Pulse
- Communication: USB Type-C, LAN
- Power: 5-15 VDC / 1.2A, <8W
- Dimensions (W x H x D): 190mm x 120mm x 18mm
- Weight: 0.38 kg
Buy the Buy Multicomp Pro Oscilloscope Part Number MP720646U S Online
Secure the Multicomp Pro dual-channel 100MHz oscilloscope online today. Featuring 8-bit resolution, a 10 million sample record length, and USB Type-C power, this compact device is perfect for detailed signal analysis. Its compatibilities include Windows, Linux, Android, and iOS, making it highly versatile. With standard and advanced trigger options, display modes, and integrated waveform and XY visualization, this scope supports multi-platform secondary development. Purchase now to enhance your electronic testing and measurement capabilities with fast data transmission and comprehensive features.
Buy Multicomp Pro MP720646U S now and experience unmatched reliability and performance with high bandwidth and integrated signal generation.
