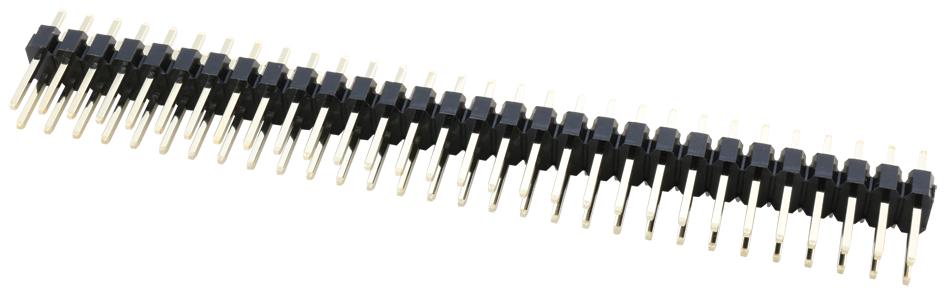

MULTICOMP PRO 2213S60G Pin Header
The 2.54mm Pin Header is a versatile, high-quality component designed for reliable electrical connections in electronic assemblies. This double row, vertical through-hole connector is rated for 3A AC/DC and 250V AC/DC, ensuring safe, efficient power transfer in various industrial and consumer applications. Constructed from UL94V-0 PBT insulator material with gold-plated contacts, it offers excellent insulation resistance and withstands voltage up to 600V for one minute. Compatible with through-hole PCB mounting, this header ensures robust and durable connections in tight spaces. Its RoHS compliance makes it environmentally friendly and suitable for modern manufacturing standards.
MULTICOMP PRO 2213S60G Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT (UL94V-0)
- Contact Material: Copper alloy with gold plating
- Plating: Gold Plated
- Dimensions: 2.54mm pitch, 26/30/50/60 positions, 2-row, through-hole
- RoHS Compliant
- Diagram: 2.54X(No. Of Positions/2)+0.3
- PCB Layout: Millimetre dimensions, compatible with through-hole mounting
Buy the Multicomp Pro 2213S60G – Reliable 2.54mm Pin Header for Industrial Applications
Enhance your electronic assemblies with the high-quality 2.54mm Pin Header. Designed for robust, reliable connections, this double row, vertical through-hole connector supports applications requiring 3A current and 250V voltage. Its gold-plated contacts ensure low contact resistance and durability, while the UL94V-0 PBT insulator provides excellent insulation and safety. Suitable for PCB mounting, it complies with RoHS standards for environmentally conscious manufacturing. Perfect for industrial, automation, and consumer electronics, order now to ensure stable, efficient electronic connectivity in your projects.
Buy Multicomp Pro 2213S60G now and experience unmatched reliability and high-performance connections for your industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2213S60G?
You can click on the BUY or RFQ button to purchase 2213S60G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2213S60G?
You can download the 2213S60G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2213S60G?
MULTICOMP PRO
