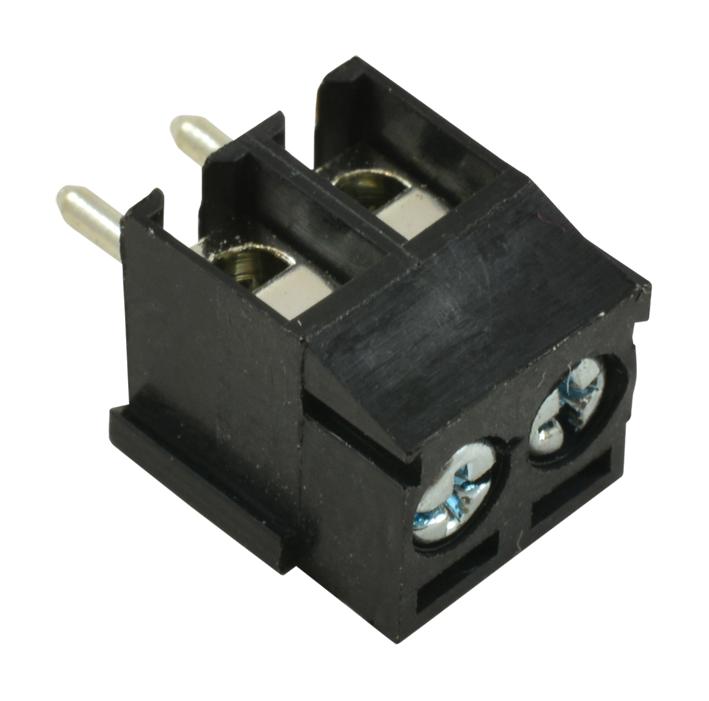

MULTICOMP PRO MA212350M02 Eurostyle Terminal Block
The MA212-350M02 is a two-position terminal block with a compact pitch of 3.50mm, featuring sturdy polyamide 66 UL94V-0 housing and stainless steel spring clips. It uses M2 zinc-plated steel screws and brass contacts with tin plating, designed to handle wire sizes from 26 to 16 AWG. The terminal block operates efficiently within a temperature range of -40°C to 105°C, supporting a maximum current of 6A at 300V. Its design ensures reliable electrical connection in industrial and automation projects, complying with RoHS standards for safety and environmental compliance.
MULTICOMP PRO MA212350M02 Eurostyle Terminal Block Specifications:
- Pitch: 3.50mm
- Poles: 2 to 3Poles
- Housing Material: PA66
- Spring Contact: Stainless Steel Strip
- Screw Thread: M2, Steel, Zinc Plated
- Wire Size: 16AWG to 26AWG
- PCB Hole Diameter: 1.2mm
- Tightening Torque, Max: 2Lb-in
- Operating Temperature: -40°C to +105°C
- Nominal Current: 6A
- Nominal Voltage: 300V
- Insulation Material: PA
- RoHS Compliant
Buy the Multicomp Series Eurostyle Terminal Block: MA212350M02
Upgrade your electronic assembly with the Eurostyle Terminal Block, designed for secure wire-to-board connections. It features a compact 3.50mm pitch, accepts 16-26 AWG wire sizes, and operates efficiently from -40°C to 105°C. Made with durable polyamide 66 housing and zinc-plated steel screws, it ensures excellent electrical performance. Suitable for industrial, automation, and control applications, this RoHS-compliant terminal block provides reliable electrical contact and easy installation. Buy online today for dependable quality in your projects.
Order your Multicomp Series Eurostyle Terminal Block MA212350M02 today and give your electronic projects reliable, high-quality wiring connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MA212350M02?
You can click on the BUY or RFQ button to purchase MA212350M02 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MA212350M02?
You can download the MA212350M02 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MA212350M02?
MULTICOMP PRO
