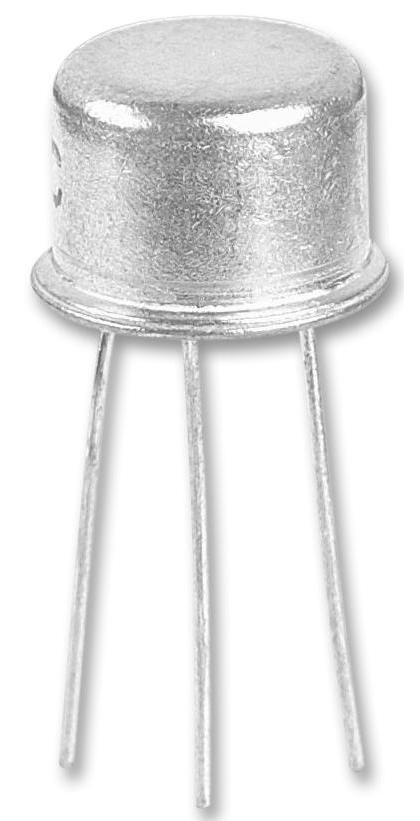

MULTICOMP PRO 2N5680 High-Voltage PNP Transistor
The 2N5680 is a high-voltage silicon PNP epitaxial planar transistor designed for use as a driver for high-power transistors in general-purpose amplifiers and switching circuits. It features a collector-base voltage of -120V and an emitter-base voltage of -4V. This component is suitable for industrial applications and is recognized for reliable performance.
MULTICOMP PRO 2N5680 High-Voltage PNP Transistor Specifications:
- Collector-Base Voltage: -120V
- Collector-Emitter Voltage: -80V
- Emitter-Base Voltage: -4V
- Collector Current: 1A
- Base Current: -0.5A
- Total Dissipation at 25°C: 10W
- Total Dissipation at 50°C: 1W
- Storage Temperature: -65°C to 200°C
- Maximum Operating Junction Temperature: 200°C
- Thermal Resistance Junction-case: 17.5°C/W
- Thermal Resistance Junction-ambient: 175°C/W
- Transition Frequency (fT): 30 MHz
- Current Gain (hFE): 5 - 150
- Collector-Base Capacitance: up to 50 pF
Buy the Multicomp Series Transistor: 2N5680
Purchase the Multicomp Series 2N5680 high-voltage PNP transistor online today. Perfect for switching circuits and power amplifiers, it offers a collector-base voltage of -120V and supports high current loads. Known for its durability and efficiency, this transistor is ideal for industrial applications, ensuring dependable operation in demanding environments. Fast, easy online ordering means you can quickly improve your electronic projects with this high-quality component for reliable performance.
Order your Multicomp Series 2N5680 high-voltage transistor today and ensure reliable performance for high-power switching and amplification projects.
