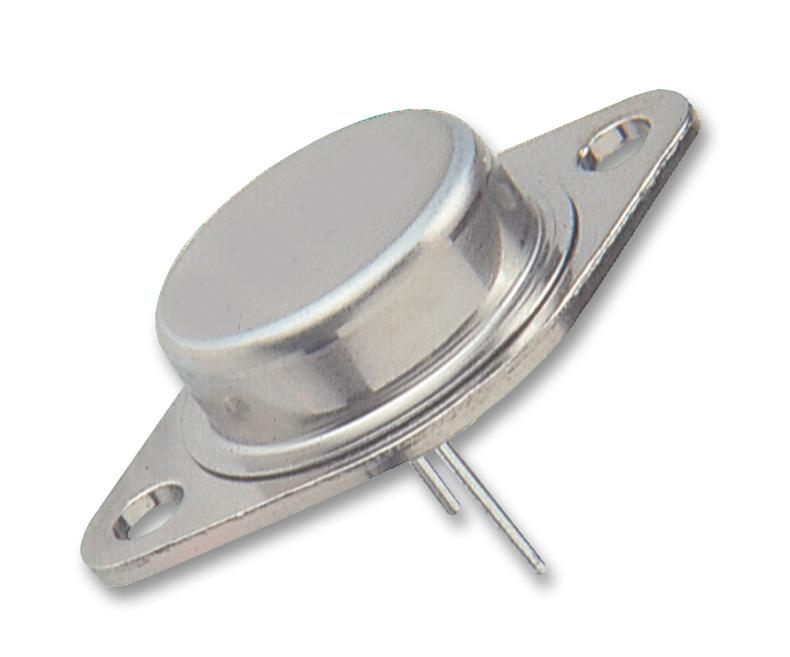

MULTICOMP PRO 2N5886 High Power Transistor
The 2N5886 is a silicon NPN power transistor rated for 80V, suitable for general-purpose power amplification and switching tasks. It features a low collector-emitter saturation voltage of 1V at 15A and an excellent DC current gain of hFE = 20 (min.) at 10A, ensuring efficient power management. With a continuous collector current of 25A and total device dissipation of 200W, it is ideal for industrial applications requiring high power handling. Its operating junction temperature range is -65°C to +200°C, making it a reliable choice for demanding environments.
MULTICOMP PRO 2N5886 High Power Transistor Specifications:
- Collector - Base Voltage: 80V
- Collector - Emitter Voltage: 80V
- Emitter - Base Voltage: 5V
- Continuous Collector Current: 25A
- Base Current: 7.5A
- Total Device Dissipation: 200W
- Operating Junction Temperature Range: -65°C to +200°C
- Storage Temperature Range: -65°C to +200°C
- Collector - Emitter Breakdown Voltage: 80V
- Collector Cut-off Current: 1mA
- Emitter Cut-off Current: 1mA
- VCE(sat): 1V at 15A
- DC Current Gain: hFE >= 20 at 10A
- Power Dissipation Derate: 1.15mW/°C above 25°C
Buy the Buy Multicomp Pro High Power Transistor Part Number 2N5886 Online
Purchase the high power NPN transistor designed for robust industrial applications online today. Featuring 80V operating voltage, 25A continuous current, and 200W dissipation, the 2N5886 offers excellent performance for power amplification and switching. Its low saturation voltage ensures efficiency, while its wide temperature range guarantees dependable operation in demanding environments. With quick online ordering, you can enhance your electronic projects with this reliable and high-quality transistor, ensuring high performance and durability for your industrial or professional applications.
Buy Multicomp Pro 2N5886 high power NPN transistor now and experience reliable switching and amplification for industrial and general-purpose applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N5886?
You can click on the BUY or RFQ button to purchase 2N5886 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N5886?
You can download the 2N5886 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N5886?
MULTICOMP PRO
