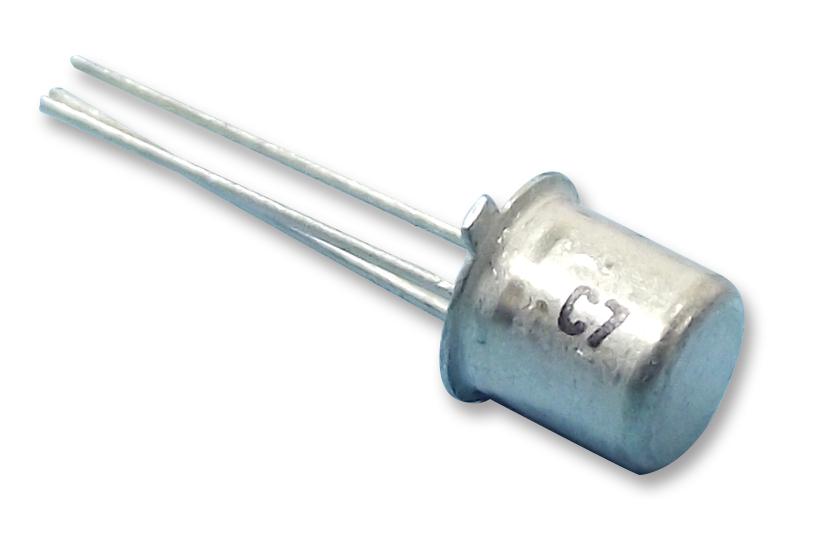

MULTICOMP PRO 2N930A NPN Transistor
The 2N930A is a 45V NPN silicon transistor suitable for medium-speed switching and amplification applications, spanning from audio frequencies to VHF. It features a collector-to-base voltage (VCBO) of 80V and an emitter-to-base voltage (VEBO) of 6V. This industry-standard component is commonly used in industrial equipment, audio electronics, and signal amplification systems. Designed in a TO-18 case, it provides a collector current of up to 30mA, with a total dissipation of 500mW and a maximum junction temperature of 200°C. RoHS compliant, it ensures safe, reliable operation in various electrical circuits.
MULTICOMP PRO 2N930A NPN Transistor Specifications:
- Collector-Base Voltage (VCBO): 80V
- Collector-Emitter Voltage (VCEO): 45V
- Emitter-Base Voltage (VEBO): 6V
- Continuous Collector Current (IC): 30mA
- Total Device Dissipation (PD): 500mW
- Total Device Dissipation Derating Above 25°C: 2.97mW/°C
- Operating Junction Temperature Range: -65°C to +200°C
- Storage Temperature Range: -65°C to +200°C
- Package: TO-18
- Maximum Collector-Base Breakdown Voltage: 80V
- Maximum Collector-Emitter Breakdown Voltage: 45V
- Maximum Emitter-Base Breakdown Voltage: 6V
- Maximum Collector Cut-off Current: 2A
- Maximum Emitter Cut-off Current: 2A
- DC Current Gain (hFE): 60 to 300
- Collector-Emitter Saturation Voltage (VCE(sat)): 0.5V at 10mA collector current
- Base-Emitter Saturation Voltage (VBE(sat)): 0.7V to 0.9V at 10mA
- Power Gain-Bandwidth Product (fT): 45– MHz
- Output Capacitance (Coo): 6 pF at 1MHz
- RoHS Compliant
Buy the Multicomp 2N930A – Reliable NPN Transistor for Industrial Applications
Purchase the multicomp 2N930A NPN transistor online today to ensure your projects and repairs benefit from high-quality, reliable electronic components. Designed for medium-speed switching and amplification, this transistor supports a broad range of industrial, audio, and RF applications. Featuring a collector-to-base voltage of 80V and a maximum collector current of 30mA, it delivers excellent performance with a maximum dissipation of 500mW. Easy to integrate in TO-18 cases, this RoHS-compliant component guarantees durability and broad operational temperature range, making it a perfect choice for your technical needs.
Get multicomp 2N930A today—built for medium-speed switching, amplification, and industrial electronics reliability.
