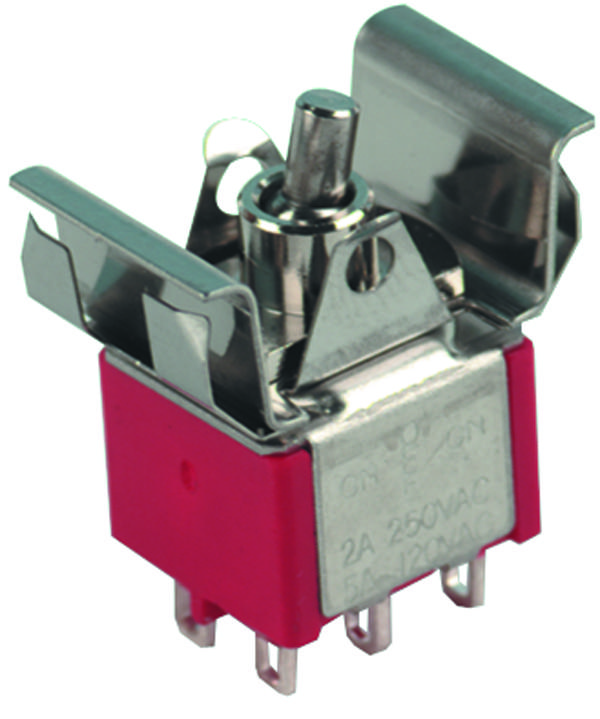

MULTICOMP PRO 3MD1M1QE industrial switch
The switch, featuring SPDT and DPDT configurations, is designed for industrial and automation applications, supporting resistive loads at 120V AC or 28V DC and up to 2A at 250V AC. It boasts a mechanical life of 50,000 cycles, with a contact resistance of 10m initial at 2 to 4V DC 100mA and insulation resistance of 1,000 MO. Made from durable materials such as nylon, brass, and stainless steel, the switch operates from -30°C to 85°C, ensures safety with UL and RoHS compliance, and is suitable for panel mounting with solder lug terminations.
MULTICOMP PRO 3MD1M1QE industrial switch Specifications:
- Contact Rating: 2A at 250 V AC, resistive load at 120V AC or 28V DC
- Mechanical Life: 50,000 cycles
- Max. Contact Resistance: 10mΩ initially at 2-4V DC 100mA
- Min. Insulation Resistance: 1,000 MO
- Dielectric Strength: 1,000 Vrms at sea level
- Operating Temperature: -30°C to 85°C
- Materials: Diallyl phthalate (case), nylon (housing), brass (bushing and terminal), stainless steel (switch support), silver plated contacts
- Physical Dimensions: support via panel mounting with actuator options R1 (long rocker), R2 (lever support); termination via solder lug
- Soldering: manual soldering using 30W soldering iron at 350°C for approximately 5 seconds; wave soldering with peak 260°C, duration 5 seconds, controlled profile
Buy the Multicomp Pro 3MD1 – Reliable DPDT Switch for Industrial Applications
Purchase the Multicomp Pro industrial switch online today—engineered for long-lasting durability, high electrical performance, and safety compliance. Designed for versatile industrial applications, it features a robust construction supporting resistive loads up to 2A at 250V AC, with a long mechanical life of 50,000 cycles. Suitable for panel mounting with solder lug terminals, it operates effectively from -30°C to 85°C. Buy now to ensure reliable switching in your automation or control systems with quick delivery and excellent customer service.
Get Multicomp Pro 3MD1 today—built for durability with reliable switching performance and easy panel mounting.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 3MD1M1QE?
You can click on the BUY or RFQ button to purchase 3MD1M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 3MD1M1QE?
You can download the 3MD1M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 3MD1M1QE?
MULTICOMP PRO
