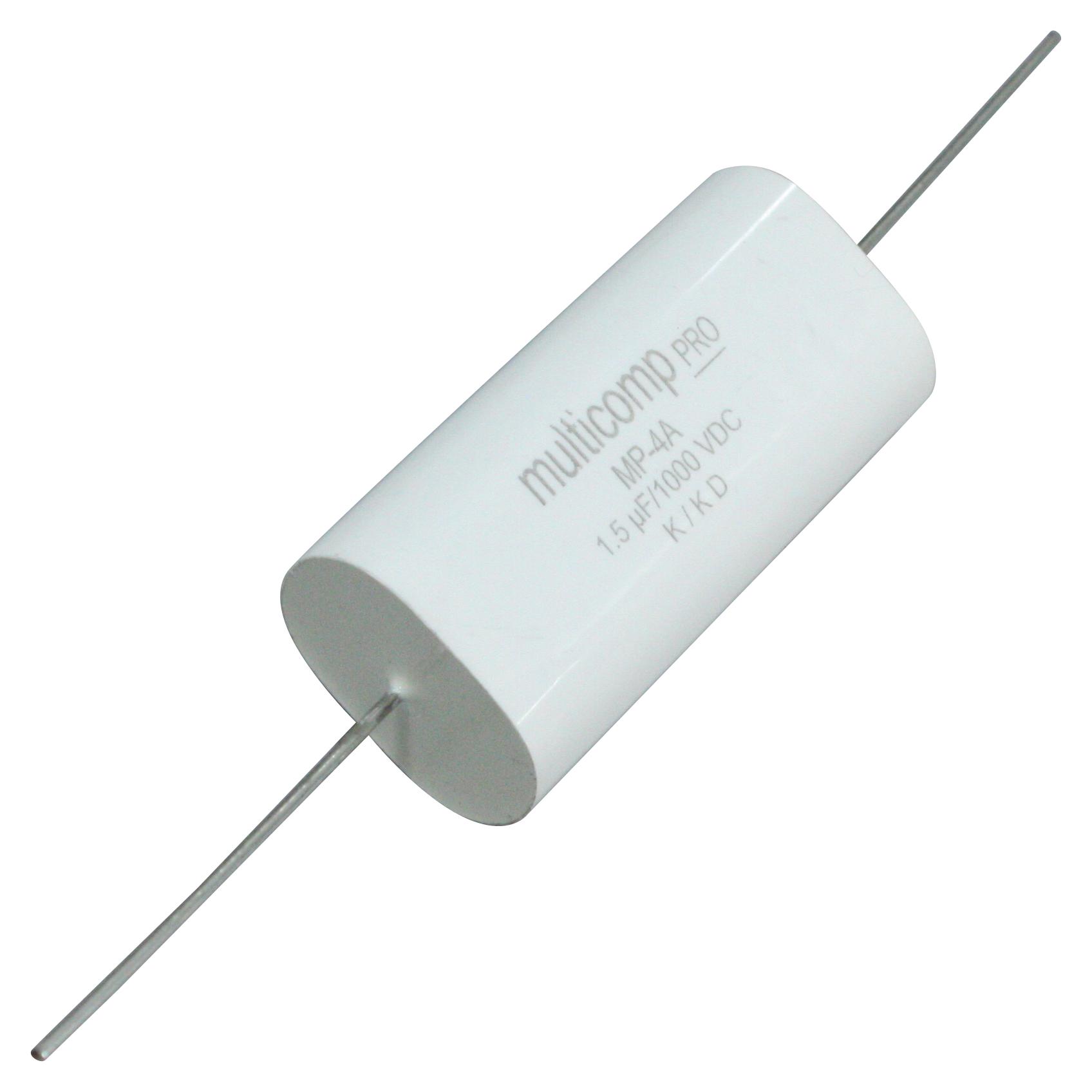

MULTICOMP PRO MP004189 Axial Snubber Capacitor
These axial leaded snubber capacitors feature low-loss polypropylene dielectric, high frequency and voltage capability, and high peak current handling. Constructed with extended double metallized polyester electrodes and metallized polypropylene film, they are suitable for high voltage, high current, and medium to high pulse applications such as snubber circuits, speed control, and SMPS. Certified to IEC 61071 standards, with UL94V-0 flame retardancy, these capacitors ensure reliable performance with low ESR, high DV/DT, and strong insulation resistance. They are available in various voltage and capacitance ratings for versatile industrial use.
MULTICOMP PRO MP004189 Axial Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film
- Electrode material: Double metallized polyester and metallized polypropylene film
- Winding construction: Extended double metallized polyester electrodes with metallized polypropylene dielectric internal series connection
- Terminal: Tinned copper
- Enclosure: UI94-VO tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151-51 μF
- Capacity tolerance: ±5% (J), ±10% (K)
- Rated voltage DC: 600, 850, 1000, 1200, 1600, 2000, 2500, 3000 V
- Rated voltage AC: 275, 450, 500, 500, 630, 630, 700, 750 V
- Test voltage between terminals: 2x rated V DC for 10 seconds
- Test voltage terminal to case: 2.3 kV AC
- Dissipation factor: < 0.0005 at 1kHz and +25°C
- Insulation resistance: >100,000 MΩ at 100 VDC after 2 min
- Temperature range: -55°C to +105°C
- Dimensions vary by capacitance and voltage rating, typically between 11.5 mm to 36 mm in diameter and up to 54 mm in length
Buy the Buy Multicomp Axial Leaded Snubber Capacitor Part Number MP004189 Online
Purchase the high-performance axial snubber capacitor MP004189 from Multicomp online—engineered for high voltage, high current, and pulse circuits. Featuring polypropylene dielectric for low loss, UL94V-0 flame retardance, and excellent insulation resistance, this capacitor guarantees durability in demanding industrial environments. It is suitable for snubber circuits, speed control, and SMPS, with precise ratings and certification for safety and efficiency. Order now to ensure reliable performance in your high voltage applications, backed by our fast delivery and customer support.
Get Multicomp axial leaded snubber capacitor MP004189 today—designed for high voltage, high current, and reliable pulse applications.
