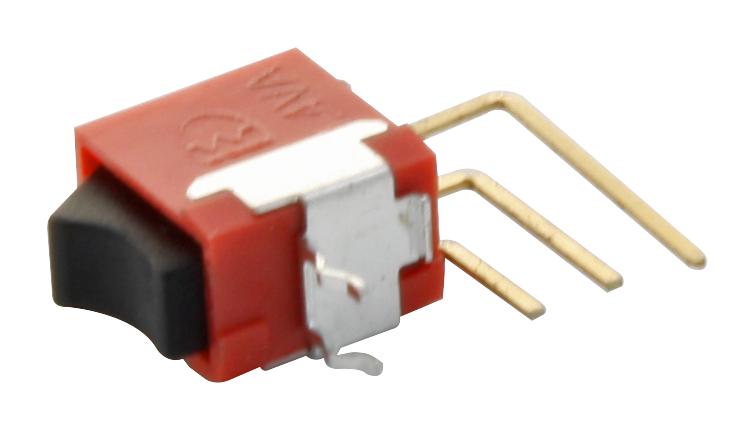

MULTICOMP PRO 4US1R102M7RN Miniature Rocker Switch
This ultraminiature rocker switch offers a compact, reliable design suitable for diverse electronic applications. It features a top-quality silver or gold-plated copper alloy contact system, ensuring low contact resistance below 100mΩ at 2 to 4V DC, 100mA. Capable of handling up to 0.4 Volt-Amps at 20V AC/DC, it provides a mechanical life of 50,000 cycles. With an operating temperature range of -30°C to 85°C, the switch includes nylon actuators, glass-filled nylon bodies, and comes sealed with internal O-rings for enhanced durability. Ideal for precise, miniature control in industrial equipment, consumer electronics, and automation systems, this switch offers a robust, RoHS-compliant design.
MULTICOMP PRO 4US1R102M7RN Miniature Rocker Switch Specifications:
- Contact Rating: 0.4 Volt-Amps (VA) Max. at 20V AC or DC Max.
- Mechanical Life: 50,000 make-and-break cycles
- Contact Resistance: Below 100mΩ at 2-4V DC, 100mA
- Min. Insulation Resistance: 500MΩ at 500V DC
- Dielectric Strength: 00V RMS at sea level
- Operating Temperature: -30°C to 85°C
- Materials: Nylon actuator, glass-filled nylon body, silver or gold-plated copper alloy contacts
- Seal: Internal O-ring standard for enhanced durability
- Mounting: Through-hole design, compliant with RoHS standards
- Switch Function: ON-None-ON, SPDT or DPDT configurations
Buy the Buy Multicomp Pro Switch Part Number 4US1R102M7RN Online
Order the Multicomp Pro miniature rocker switch 4US1R102M7RN online today to experience exceptional reliability and compact design. Perfect for precise control in industrial, automation, and consumer electronics, this switch features a durable silver or gold-plated copper alloy contact system rated at 0.4 VA and capable of enduring 50,000 cycles. Operating seamlessly from -30°C to 85°C, it includes sealed nylon actuators for enhanced durability. Buy now to enhance your electronic projects with a high-quality, RoHS-compliant switch that ensures long-term performance and reliability.
Get Multicomp Pro switch 4US1R102M7RN today—designed for precise control, long-lasting durability, and reliable performance in miniature electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 4US1R102M7RN?
You can click on the BUY or RFQ button to purchase 4US1R102M7RN from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 4US1R102M7RN?
You can download the 4US1R102M7RN datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 4US1R102M7RN?
MULTICOMP PRO
