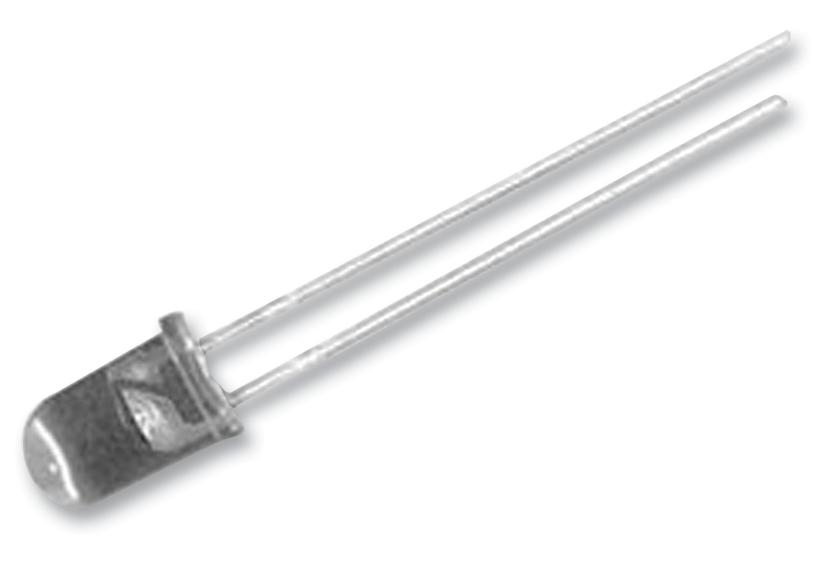

MULTICOMP-PRO 7030098 Yellow Indicator LED
The 703-0098 yellow round LED lamp features a 5mm round lens with a luminous intensity of 150mcd, peak wavelength of 590nm, and a viewing angle of 15°. Made with GaAsP/GaP chips and encapsulated in yellow clear epoxy resin, it provides efficient illumination for electronic devices and indicator applications. Operating within -25°C to +85°C and dissipating up to 78mW, this LED ensures reliability and durability in various environments. Suitable for general LED lighting, panel indicators, and signaling, it combines brightness and energy efficiency in a compact form factor.
MULTICOMP-PRO 7030098 Yellow Indicator LED Specifications:
- Lens Diameter: 5mm
- Color: Yellow
- Peak Wavelength: 590 nm
- Luminous Intensity: 150 mcd
- Viewing Angle: 15 degrees
- Forward Voltage: 2.1 - 2.6 V
- Forward Current: 20 mA
- Power Dissipation: 78 mW
- Operating Temperature Range: -25°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Encapsulation: Yellow clear epoxy resin
- Maximum Reverse Voltage: 5 V
- Soldering Temperature: 260°C for 5 sec
- Pulse Forward Current: 100 mA
- Reverse Leakage Current: 100 pA
Buy the Premier Farel Series Yellow LED: 7030098
Get the high-quality Premier Farel yellow LED now available online. Featuring a 5mm round lens, 150mcd brightness, 590nm wavelength, and robust GaAsP/GaP chips, this LED offers excellent visibility and durability. Perfect for indicator lights, signaling, or panel illumination, it operates efficiently within a temperature range of -25°C to +85°C and dissipates up to 78mW of power. Whether for industrial, commercial, or hobby projects, this LED guarantees performance, energy efficiency, and reliable operation. Purchase online today for fast delivery and competitive prices.
Order your Premier Farel Series 7030098 yellow LED today and ensure reliable, energy-efficient indicator lighting for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 7030098?
You can click on the BUY or RFQ button to purchase 7030098 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 7030098?
You can download the 7030098 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 7030098?
MULTICOMP-PRO
