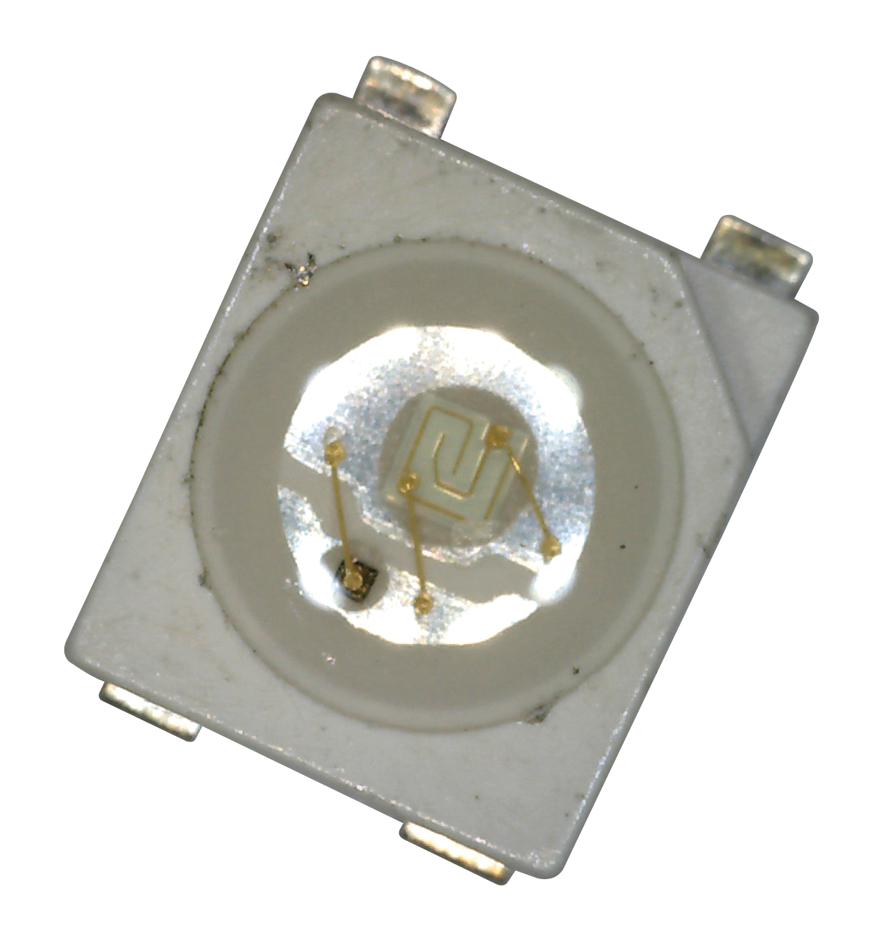

MULTICOMP PRO 7031038 High-Brilliance Surface-Mount LED
The part number 703-1038 is a surface-mount green high-brightness LED featuring a water-clear lens, measuring 3.2 x 2.8 mm with a power rating of 0.5W. It is built using InGaN/Al2O3 technology, providing bright green illumination. The device includes a 6kV ESD protection feature. Suitable for LED lighting applications. Handle with proper ESD precautions as it is an ESD-sensitive component.
MULTICOMP PRO 7031038 High-Brilliance Surface-Mount LED Specifications:
- Size: 3.2 mm x 2.8 mm
- Power Dissipation: 0.5W
- Luminous Flux: 12-16.1 lm
- Forward Voltage: 3.2-3.8 V
- Peak Wavelength: - nm
- Dominant Wavelength: 525 nm
- Reverse Voltage: 5 V
- Reverse Current: 50 pA
- Viewing Angle: 120 degrees
- Operating Temperature Range: -40 to +75°C
- Storage Temperature Range: -40 to +105°C
- ESD Protection: 6,000 V
- Soldering Temperature: Hand: 360°C
- Reflow Soldering: Max peak 260°C
- ESD static voltage: 6,000 V
- Absolute Max Junction Temperature: 110°C
Buy the Buy Multicomp Green LED Part Number 703-1038 Online
Order the Multicomp high-brilliance green LED Part Number 703-1038 online today. This 3.2 x 2.8 mm SMD component offers 0.5W power, bright green illumination, and robust ESD protection. Ideal for LED circuits, displays, and illumination systems, it ensures reliable performance with a wide temperature range and excellent optical properties. Purchase now to enhance your electronic applications with this high-quality, water-clear lens LED, backed by fast shipping and competitive pricing.
Get Multicomp 703-1038 today—built for high brightness and long-lasting durability in electronic lighting projects.
