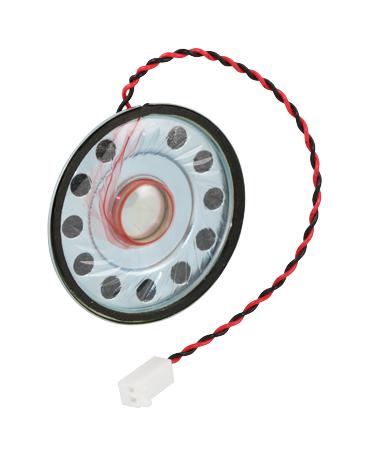

MULTICOMP PRO ABS210135RC Audio Speaker
This paper cone speaker features a 135mm diameter with leads and a connector, optimized for low-profile audio applications. It boasts a resonant frequency of 50-20,000Hz, a sound pressure level of 92±3dB at 0.1W/0.1m, and a total harmonic distortion of 5% max. Constructed with a NdFeB magnet, PET diaphragm, and SPCC frame, it delivers clear audio across a wide frequency range. Suitable for various electronic sound projects, it operates between -10°C to +40°C, offering reliable performance in compact spaces.
MULTICOMP PRO ABS210135RC Audio Speaker Specifications:
- Rated Impedance: 8Ω
- Resonant Frequency: 50-20,000Hz
- Sound Pressure Level at 0.1W/0.1m: 92±3dB
- Total Harmonic Distortion: 5% max.
- Magnet: NdFeB
- Voice Coil Diameter: 13.28mm
- Diaphragm Material: PET
- Frame and Plate Material: SPCC
- Operating Temperature: -10°C to +40°C
- Storage Temperature: -20°C to +60°C
- Wire Gauge: 24AWG
- Weight: 13.2g
Buy the Multicomp Series Audio Speaker: ABS-210-135-RC
Purchase the Multicomp ABS-210-135-RC audio speaker online today and enhance your electronic sound projects with this compact, high-performance component. Featuring a 135mm paper cone, NdFeB magnet, and wide frequency response, it offers excellent sound quality and durability in a low-profile design. Ideal for custom audio solutions, it supports operation across a broad temperature range, making it suitable for various environments. Order now to benefit from fast delivery and improve your audio implementations with confidence.
Buy Multicomp ABS-210-135-RC now and experience reliable and efficient audio performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABS210135RC?
You can click on the BUY or RFQ button to purchase ABS210135RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABS210135RC?
You can download the ABS210135RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABS210135RC?
MULTICOMP PRO
