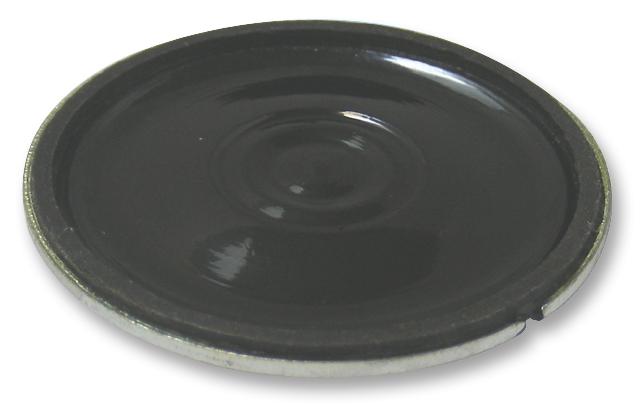

MULTICOMP PRO ABS222RC Mylar Cone Speaker
The Mylar cone speaker features a 36mm diameter with a black Mylar diaphragm and a metal housing, providing high sound clarity and durability. This compact speaker operates efficiently with a rated impedance of 2.02Ω and can handle a nominal power of 1W with a maximum power of 1.2W. Its resonant frequency is 550Hz, with a broad frequency range from 0 to 11,000Hz, delivering sound output levels of 85±3dB at 1W/1m. Suitable for various electronic applications, it performs reliably within temperature ranges of -20°C to +60°C and -30°C to +60°C during storage.
MULTICOMP PRO ABS222RC Mylar Cone Speaker Specifications:
- Rated impedance: 2.02Ω
- Nominal power: 1W
- Maximum power: 1.2W
- Resonant frequency: 550Hz
- Frequency range: 0 - 11,000Hz
- Sound output level at 1W/1m: 85±3dB
- Operating temperature: -20°C to +60°C
- Storage temperature: -30°C to +60°C
- Dimensions: 36mm diameter
- Diaphragm material: Mylar
- Housing material: Metal
- RoHS Compliant
Buy the Buy Multicomp Mylar Cone Speaker Part Number ABS222RC Online
Explore the high-quality Mylar cone speaker with a 36mm diameter, 2Ω impedance, and 1W nominal power. Perfect for compact audio projects, it offers excellent sound clarity with a broad frequency response up to 11,000Hz. Its durable metal housing and roHS compliance make it suitable for various applications, ensuring reliable performance within temperature ranges from -20°C to +60°C during operation and -30°C to +60°C during storage. Easily purchase online for your electronic or DIY projects today.
Get Multicomp Mylar Cone Speaker ABS222RC today—engineered for clear audio output and long-lasting performance in electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABS222RC?
You can click on the BUY or RFQ button to purchase ABS222RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABS222RC?
You can download the ABS222RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABS222RC?
MULTICOMP PRO
