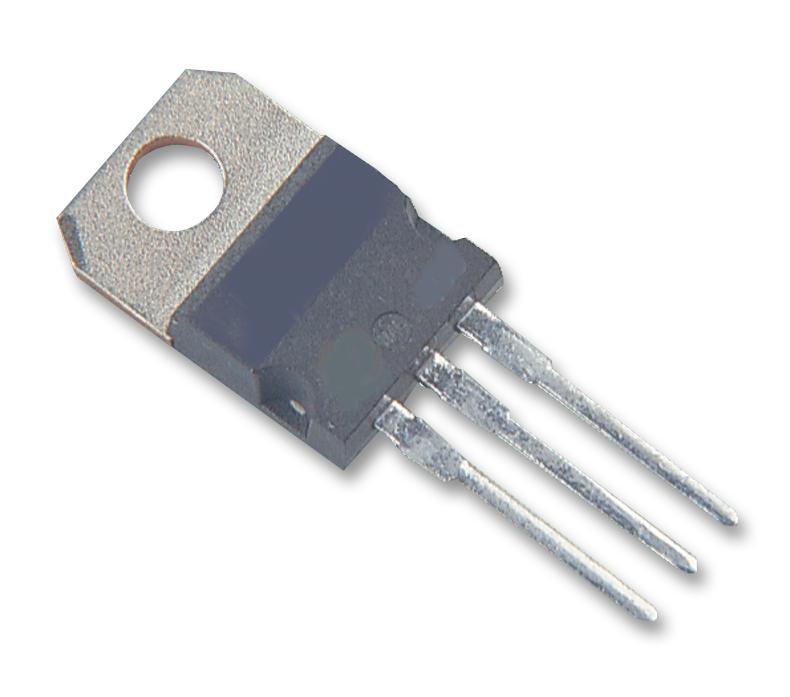

MULTICOMP PRO BD243C High Power Bipolar Transistor
The BD243C is an NPN plastic high-power bipolar transistor suitable for general-purpose amplification and switching applications. It offers a junction-to-case thermal resistance of 1.92°C/W and supports collector-Base, collector-emitter, and emitter-Base voltages up to 100V, 100V, and 5V respectively. The transistor handles collector currents up to 6A (peak 10A), with a total power dissipation of 65W at 25°C. Its high DC current gain and low saturation voltage make it ideal for industrial automation, audio systems, and signal processing circuits. Dimensions include typical pin configurations and TO-220 package details.
MULTICOMP PRO BD243C High Power Bipolar Transistor Specifications:
- Collector-Base Voltage: 100 V
- Collector Emitter Voltage: 100 V
- Emitter-Base Voltage: 5 V
- Collector Current: 6 A (peak 10 A)
- Total Power Dissipation: 65 W at 25°C
- Junction Temperature: 150°C
- Thermal Resistance: 1.92°C/W from junction to case
- Storage Temperature: -65°C to +150°C
- Dimensions: TO-220 package, pin configuration includes base, collector, emitter
- DC Current Gain (hFE): Min. 30 at Ic=0.3A
- Saturation Voltage: 1.5 V at Ic=6A
- Base-Emitter On Voltage: Max. 2 V at Ic=6A
- Breakdown Voltages: Collector-Emitter Min. 100 V, Emitter-Base Max. 5 V
- Small Signal Gain: Min. 20 at frequency 1 kHz
- Transition Frequency: 3 MHz
- Package Type: TO-220
Buy the Multicomp BD243C – Reliable High Power Transistor for Industrial Applications
Order the high power bipolar transistor now for your industrial and electronic projects. This reliable NPN transistor handles currents up to 6A and dissipates 65W, making it perfect for switching, amplification, and signal processing applications. With a TO-220 package, it offers easy installation and robust thermal management. Ideal for automation systems, audio equipment, and circuit design, this transistor ensures high efficiency and durability in demanding environments. Shop online today for quick delivery and technical support.
Buy Multicomp BD243C now and experience unmatched reliability and performance in high-power switching and amplification tasks.
