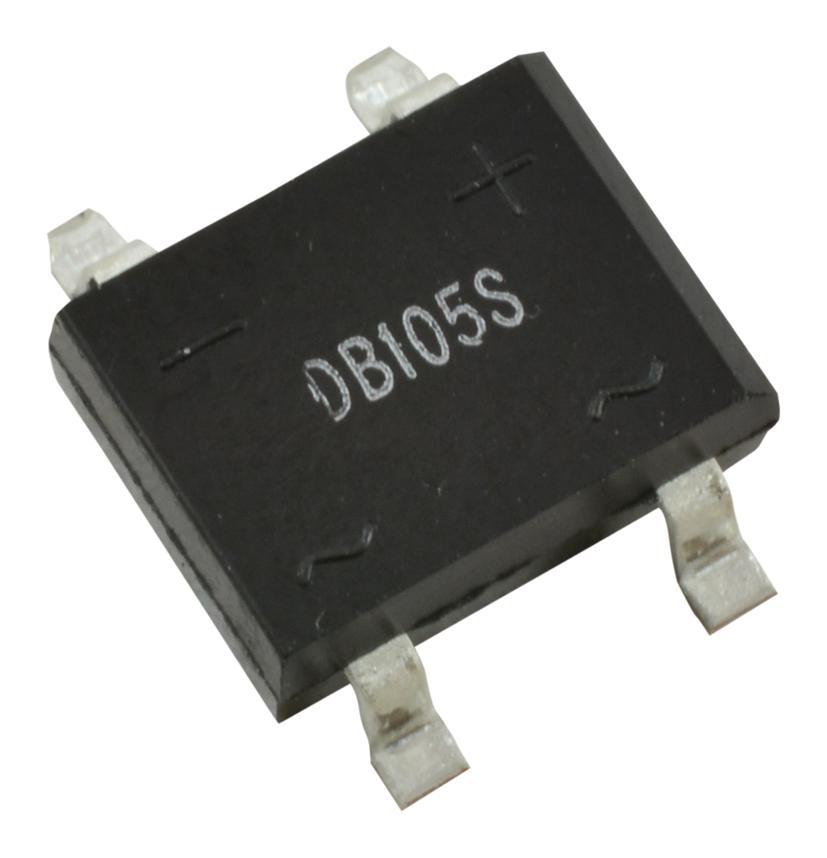

MULTICOMP PRO DB105S Bridge Rectifier
The DB105S is a 4-pin single-phase bridge rectifier diode designed with a molded plastic construction for durability. It features a low forward voltage drop and high current capacity, with polarity markings on the body. The device is suitable for PCB mounting in any orientation and is ideal for applications such as mains rectification. It has a maximum RMS voltage of 420V, a wide operating temperature range from -55°C to 150°C, and a UL94V-0 flammability rating. The device is glass passivated, ensuring reliability in electronic circuits.
MULTICOMP PRO DB105S Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 420 V
- Maximum RMS Voltage: 420 V
- Maximum DC Blocking Voltage: 600 V
- Maximum Average Forward Rectified Current at Tj=40°C: 1 A
- Peak Forward Surge Current: 30 A
- Maximum Forward Voltage at 1 A dc: 1.4 V
- Maximum Reverse Current at Tj=25°C: 10 A
- Operating Temperature Range: -55°C to +150°C
- Mounting: Any orientation on PCB
- Material: Molded plastic with UL94V-0 flammability rating
- Dimensions: Not specified, standard for SB110 packages
- Insulation: Not specified
- Thermal Resistance: From junction to ambient, mounted on PCB with copper pads
Buy the Multicomp Series DB10 Bridge Rectifier: DB105S
Experience reliable power conversion with the Multicomp DB105S bridge rectifier. This high-quality, single-phase device with 420V RMS and 1A current rating ensures efficient rectification for your electronic projects. Its molded plastic construction provides durability, while the wide operating temperature range from -55°C to 150°C supports versatile applications. Easy to mount on PCB in any orientation, this rectifier guarantees long-term performance and safety, making it an excellent choice for both hobbyists and professionals seeking top-tier reliability.
Get Multicomp DB105S today—built for precision and long-lasting durability in electronic rectification applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DB105S?
You can click on the BUY or RFQ button to purchase DB105S from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DB105S?
You can download the DB105S datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DB105S?
MULTICOMP PRO
