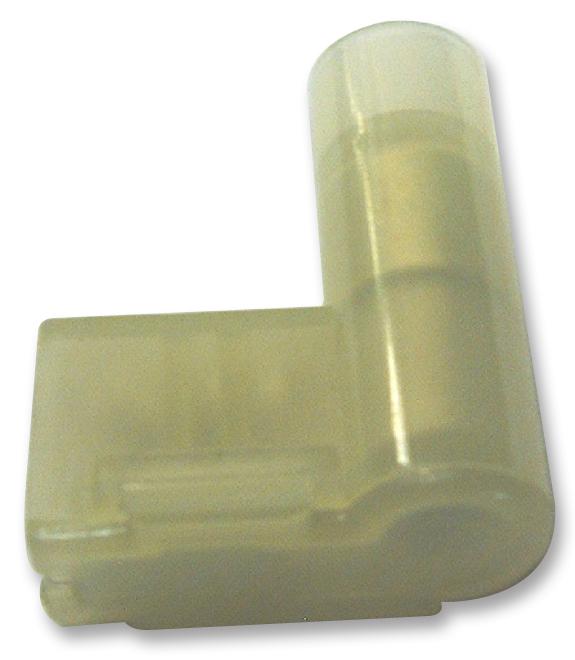

MULTICOMP PRO FLDNYDX5250 Flag Terminal
The Flag Terminal is designed for electrical connections with a focus on durability and reliable crimping. Made from tin-plated brass, it supports wire ranges from 12AWG to 10AWG and is rated for 20-24 amps at 105°C and 300V. The terminal features a yellow nylon insulator, a double crimp design, and a maximum cable diameter of 2.59mm. Its compact size ensures easy installation in various electrical applications, providing secure termination with a 6.6mm tab width, suitable for NEMA tabs and disconnect connectors, ensuring efficient and safe electrical connections.
MULTICOMP PRO FLDNYDX5250 Flag Terminal Specifications:
- Max. Electric Current: 20-24A
- Max. Electrical Rating: 300V, 105°C
- Insulation Material: Nylon
- Insulation Colour: Yellow
- Terminal Material: Brass
- Wire Range: 12AWG - 10 AWG (4mm² - 6mm²)
- Terminal Surface Treatment: Tin Plated
- Terminal Thickness: 0.032 inches
- Connector Type: Flag Terminal
- Termination Method: Crimp
- Cable Diameter Max: 2.59mm
- Cable Diameter Min: 2.05mm
- Tab Width: 6.6mm
Buy the Multicomp Series Flag Terminal: FLDNYDX5250
Purchase the Multicomp Flag Terminal FLDNYDX5250 online today for dependable electrical termination, featuring tin-plated brass construction, nylon insulation, and support for 12-10 AWG wires. With a max current of 24 amps and rated at 300 volts, this yellow-insulated terminal ensures safe and efficient connections. Its double crimp design offers added security, while the compact size, 6.6mm tab width, and reversible design make installation quick and easy. Ideal for industrial, automation, and control systems, providing durability and consistent performance over time.
Get Multicomp Flag Terminal FLDNYDX5250 today—built for secure and reliable electrical connections in industrial and automation applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO FLDNYDX5250?
You can click on the BUY or RFQ button to purchase FLDNYDX5250 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part FLDNYDX5250?
You can download the FLDNYDX5250 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of FLDNYDX5250?
MULTICOMP PRO
