MULTICOMP PRO MC002103 Cooling Fan

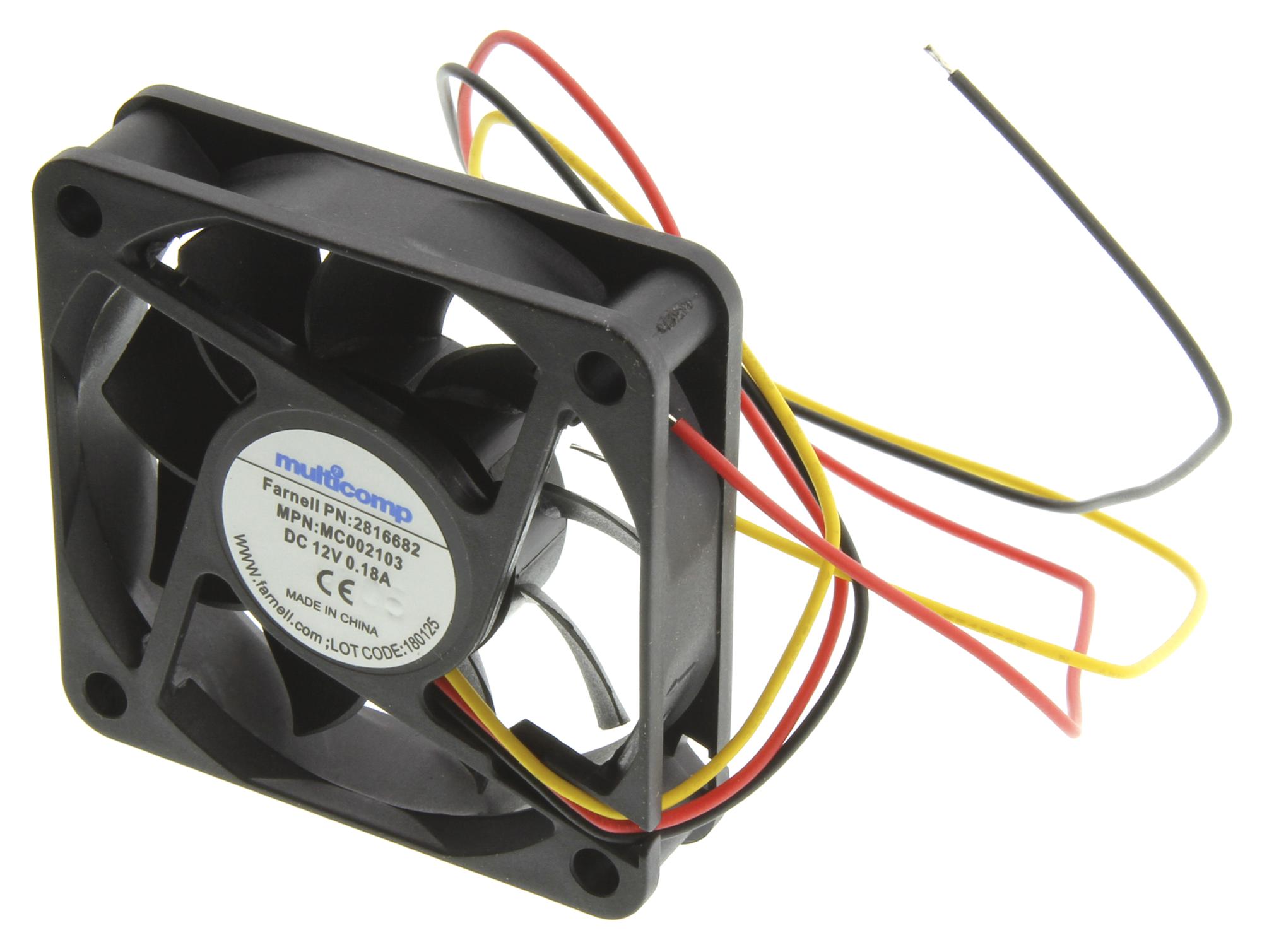

The DC Brushless Cooling Fan is an axial motor fan designed for efficient cooling in electronic equipment. It features a black PBT UL94V-0 housing and blades, with a fluid bearing for durability. Operating at 12V DC with a rated current of 0.18A and a startup voltage of 7V, it delivers a maximum speed of 4500 RPM. The fan provides airflow up to 18.6 CFM, with a noise level of 27.7dBa, and is rated for an operational temperature range of -10°C to +70°C. Its robust design ensures long-lasting performance in various environmental conditions.
MULTICOMP PRO MC002103 Cooling Fan Specifications:
- Housing: Black PBT UL94V-0
- Blade: Black PBT UL94V-0
- Bearing: Fluid Bearing
- Rated Voltage: 12V DC
- Rated Current: 0.18A +0.03A
- Startup Voltage: 7V DC
- Rated Input Power: 3W +10%
- Operating Voltage: 10.2 to 13.8V DC
- Speed: 4500 RPM ±10%
- Max. Air Flow: 18.6 CFM
- Max. Air Pressure: 3.14 mm H2O
- Noise Level: 27.7dBa
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +80°C
- Environmental Conditions: Standard at 25°C to 35°C
- Durability: 30,000 hours at 25°C
- Dimensions: 60mm x 60.5mm x 25mm
- Material: PBT with UL94V-0 flammability rating
Buy the Buy multicomp Cooling Fan Part Number MC002103 Online
Discover the reliable performance of this axial cooling fan designed for electronic systems. Rated at 12V DC with an airflow of 18.6 CFM, it features a fluid bearing for durability and operates quietly at 27.7dBa. The compact dimensions and high RPM make it ideal for various cooling applications, ensuring efficient heat dissipation. Safe for diverse environments with a temperature range of -10°C to +70°C, this fan offers long-term endurance of up to 30,000 hours. Purchase online to enhance your electronic cooling solutions today.
Buy multicomp MC002103 cooling fan now and ensure long-lasting, efficient electronic cooling with durable fluid bearing technology.
