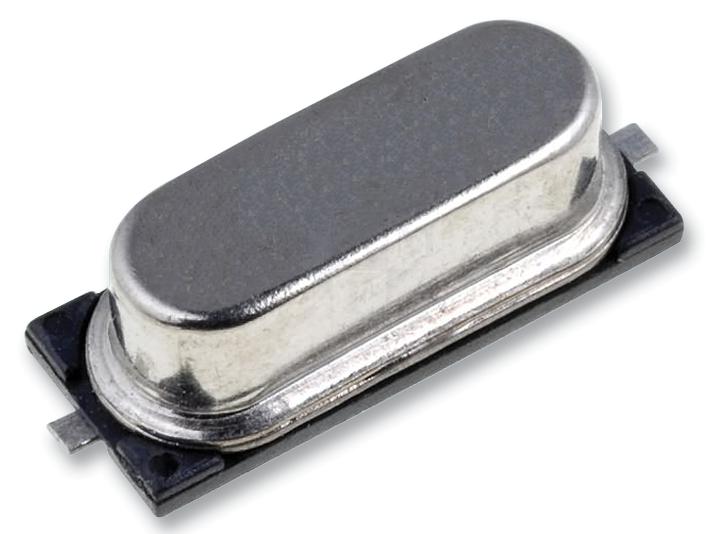

MULTICOMP PRO HC49SM1030506016ATF Crystal Oscillator
This high-precision crystal oscillator offers stable frequency performance across a broad range, suitable for applications in microcontrollers, communication equipment, and industrial electronics. Featuring a low-profile, surface-mount design with a height of 1.4mm, it ensures easy integration into space-constrained designs. The crystal operates within -20°C to +70°C (optionally -30°C to +80°C), with a temperature tolerance of ±50ppm. Its robust construction includes a ceramic package, making it ideal for microcontroller synchronization, timing circuits, and digital electronics requiring reliable, accurate oscillation. Compatible with a variety of load capacitances, it provides consistent operation in diverse environments.
MULTICOMP PRO HC49SM1030506016ATF Crystal Oscillator Specifications:
- Nominal Frequency Range: 10 to 30 MHz / 30 to 60 MHz
- Vibration Mode: Fundamental (AT) / 3rd Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30, or +50ppm
- Temperature Stability: +30 or +50ppm
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Load Capacitance: 8 pF to 32 pF or series
- Equivalent Series Resistance: See ESR table below
- Shunt Capacitance: 7pF maximum
- Drive Level: 100uW maximum
- Insulation Resistance: 500MQ minimum at 100V DC
- Aging: +5ppm per year
- Design: Surface mount, ultra-thin ceramic package, height 1.4mm
- Application: Microcontrollers, communication equipment, timing circuits
Buy the Multicomp Series HC49SM Crystal Oscillator: HC49SM1030506016ATF
Get the reliable, high-precision crystal oscillator designed for microcontrollers, communication systems, and industrial electronics. Featuring a low profile of just 1.4mm height, it is perfect for space-constrained applications. Its wide frequency range and robust ceramic package ensure stable operation across -20°C to +70°C, with optional extended temperature range up to -30°C to +80°C. Suitable for various load capacitances, this surface-mount component guarantees accuracy, durability, and easy integration into modern electronic designs. Purchase online today for quality performance and quick delivery.
Order your Multicomp Series HC49SM crystal oscillator today and give your projects the dependable, space-saving timing performance they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49SM1030506016ATF?
You can click on the BUY or RFQ button to purchase HC49SM1030506016ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49SM1030506016ATF?
You can download the HC49SM1030506016ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49SM1030506016ATF?
MULTICOMP PRO
