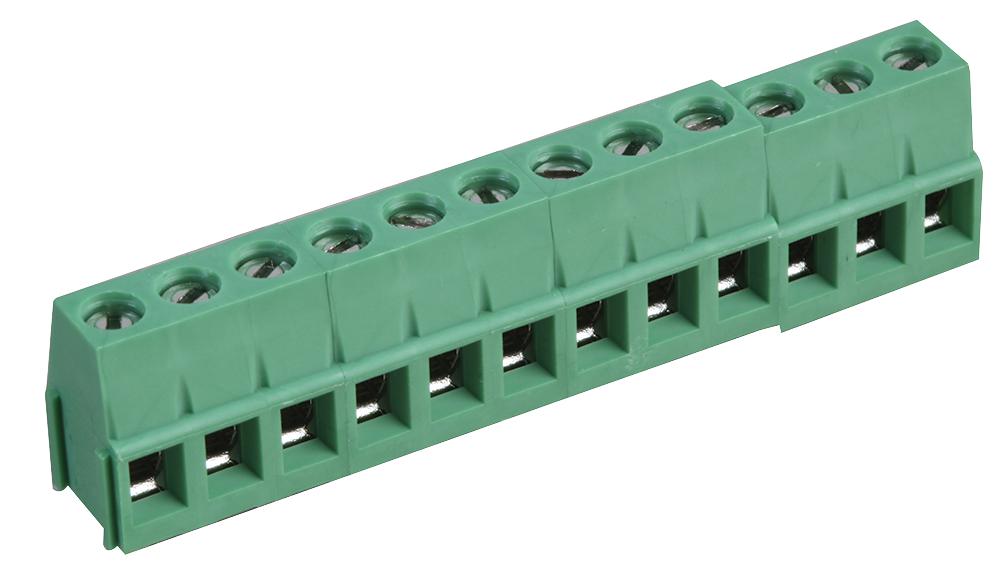

MULTICOMP-PRO MC000041 Wire-to-Board Terminal Block
The MC000041 is a 12-position wire-to-board terminal block rated for 16A, featuring tin-plated brass terminals, a green polyamide 66 housing, and a nickel-plated steel cage clamp with a screw connection. It offers secure screw wire connections, a right-angle through-hole mounting, and operates efficiently within a temperature range of -40°C to 105°C. Designed for reliable electrical performance, this terminal block is ideal for industrial wiring, control panels, and automation systems. Its durable construction ensures long-term stability and safety in various electrical applications.
MULTICOMP-PRO MC000041 Wire-to-Board Terminal Block Specifications:
- Rated Voltage: AC 250V
- Rated Current: 16A
- Wire Size: 26 AWG to 12 AWG
- Housing Material: Polyamide66
- Terminal Material: Brass, Tin Plated
- Cage Clamp: Steel, Ni Plated
- Screw Size: M2.6, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- Dimensions: 61mm length, 12 ways, 2.4 inches total length
- PCB Hole Diameter: 1.5mm
- UL and VDE Certification: Approved
- Mounting Style: Through-hole, right-angle
- Maximum Voltage: 300V (UL), 250V (VDE)
Buy the Multicomp Series 5.08mm Terminal Block: MC000041
Purchase the Multicomp MC000041 terminal block online today. Designed for industrial wiring, this 12-position connector offers reliable screw connections, durable polyamide housing, and extensive voltage and current ratings. Perfect for automation, control panels, and electrical systems, it ensures secure, stable connections with a temperature range of -40°C to 105°C. Order now to benefit from fast shipping, trusted quality, and competitive prices online.
Get Multicomp MC000041 today—built for secure connections and long-lasting durability in electrical assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC000041?
You can click on the BUY or RFQ button to purchase MC000041 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000041?
You can download the MC000041 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC000041?
MULTICOMP-PRO
