MULTICOMP PRO MC000089 Terminal Block

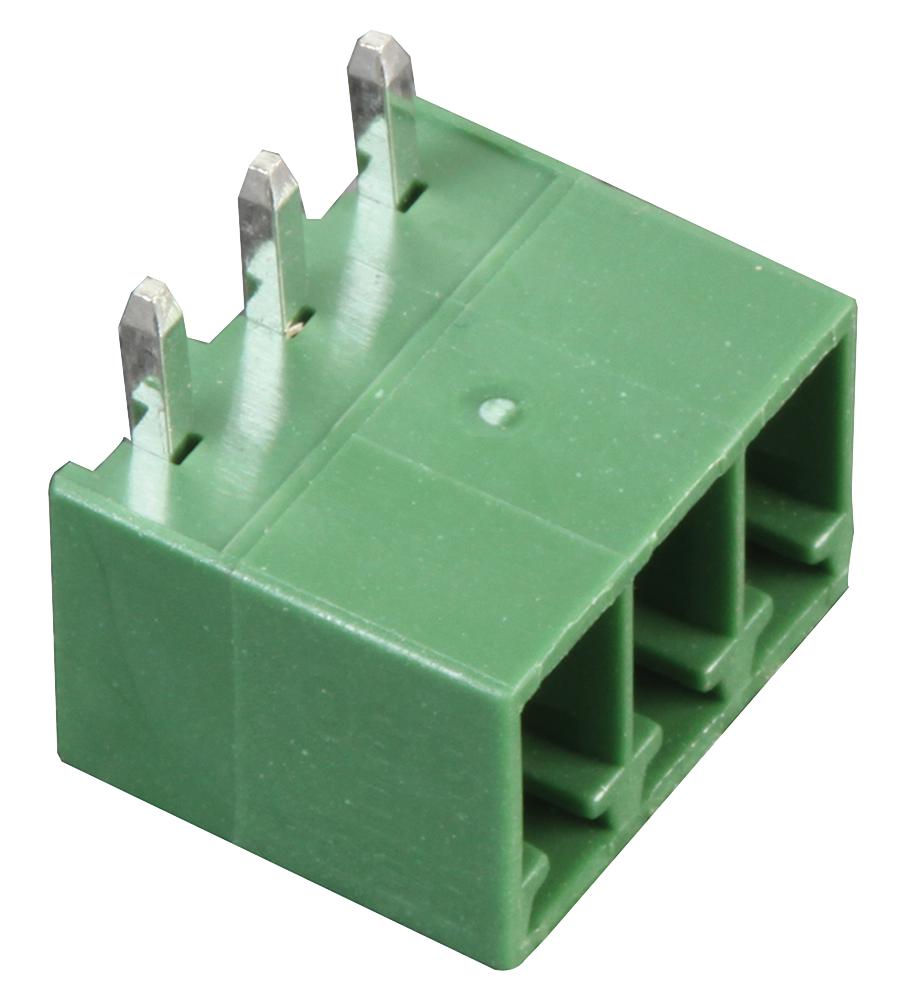

This pluggable terminal block offers reliable connectivity for industrial automation and control systems. Made with polyamide 66 insulative body and tin-plated brass solder pins, it supports current ratings up to 12A at 150V AC. The terminal block features a compact 3.5mm pitch, right-angle design, and various pole configurations from 3 to 12 ways. Operating within -40°C to +105°C temperature range, it provides excellent insulation resistance (>2000MO at 500V DC) and withstands insulation voltage up to 2000V AC. Ideal for robust, modular wiring applications in industrial environments.
MULTICOMP PRO MC000089 Terminal Block Specifications:
- Rating Current: 12 Amperes, 150V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MO at 500V DC
- Operating Temperature: -40°C to +105°C
- Pitch: 3.5mm (0.138 Inch)
- Pole Options: 3, 4, 5, 6, 8, 10, 12 ways
- Insulating Body Material: Polyamide 66
- Solder Pin Material: Brass, Tin Plated
- Dimensions vary for each pole count, from 7.6mm to 42.6mm length
Buy the Multicomp 12A02 – Reliable Connectors for Industrial Applications
Secure your industrial wiring with this high-quality terminal block. Designed with a compact 3.5mm pitch and a robust insulative polyamide body, it ensures safe, reliable connections for control panels and automation systems. With current capacity up to 12A at 150V AC and excellent insulation resistance, this pluggable connector is ideal for modular industrial electronics. Choose from various pole configurations, including 3, 4, 5, 6, 8, 10, and 12 ways for versatile electrical distribution and connection solutions. Order online today for quick, reliable delivery.
Buy Multicomp 12A02 now and experience unmatched reliability and performance for industrial wiring needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000089?
You can click on the BUY or RFQ button to purchase MC000089 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000089?
You can download the MC000089 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000089?
MULTICOMP PRO
