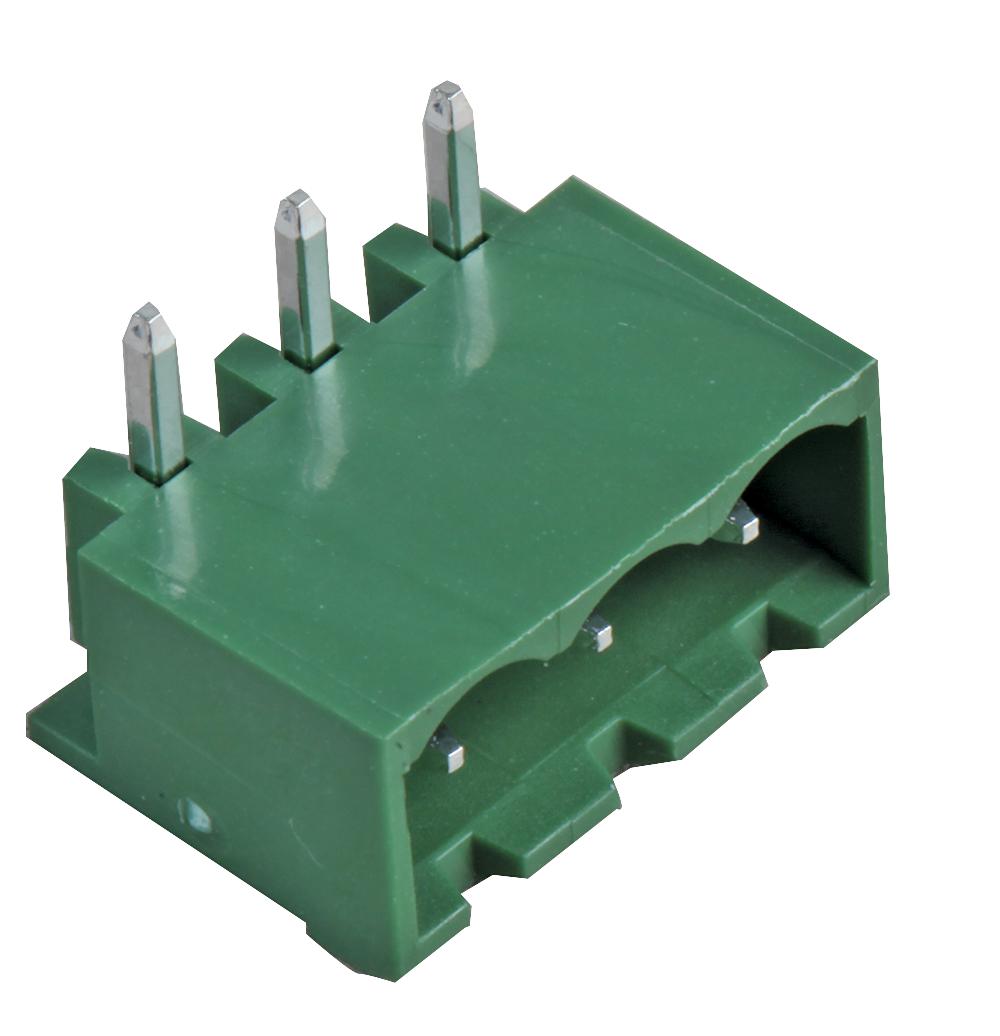

MULTICOMP PRO MC000209 Pluggable Terminal Header
The MC000209 is a 3-way, 5.08mm pitch pluggable terminal block header featuring tin-plated brass solder pins and a green polyamide 66 insulating body. It has a through-hole, right-angle orientation, suitable for secure electrical connections. The terminal block offers an insulation resistance greater than 2000 megaohms and operates within a temperature range of -40°C to +105°C. This product is part of the Multicomp Pro range, which has a rating of 4.6 out of 5 stars, and comes with a 12-month limited warranty.
MULTICOMP PRO MC000209 Pluggable Terminal Header Specifications:
- Rating current: 16 amperes, 300 V ac
- Minimum insulation withstand voltage: 2,000 V ac
- Insulation resistance: > 2,000 megaohms at 500 V dc
- Operating temperature: -40°C to +105°C
- Material: Polyamide 66 - Green
- Solder Pins: Brass, Tin Plated
- Pitch: 5.08 mm (0.2 inch)
- Number of poles: 2, 3, 4, 5, 6, 8, 10, 12 Way options
- Physical dimensions vary by poles: e.g., 11.76 mm (0.463 inch) for 2 pole, up to 62.56 mm (2.463 inch) for 12 pole
- Type: Right Angle Pluggable Header
- Rated current: 16A
Buy the Multicomp Series Pluggable Terminal Header: MC000209
Enhance your electronic projects with the MC000209 pluggable terminal header, featuring a 5.08mm pitch, brass solder pins, and a robust green polyamide insulator. Perfect for secure, high-performance connections, it operates efficiently within a temperature range of -40°C to +105°C. With its high insulation resistance of over 2000 megaohms and multiple pole options from 2 to 12, this right-angle header offers flexibility and reliability for industrial and electronic applications. Easily order online for quick, hassle-free delivery.
Buy Multicomp MC000209 now and experience reliable electrical connections with high insulation resistance and a durable polyamide insulator.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000209?
You can click on the BUY or RFQ button to purchase MC000209 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000209?
You can download the MC000209 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000209?
MULTICOMP PRO
